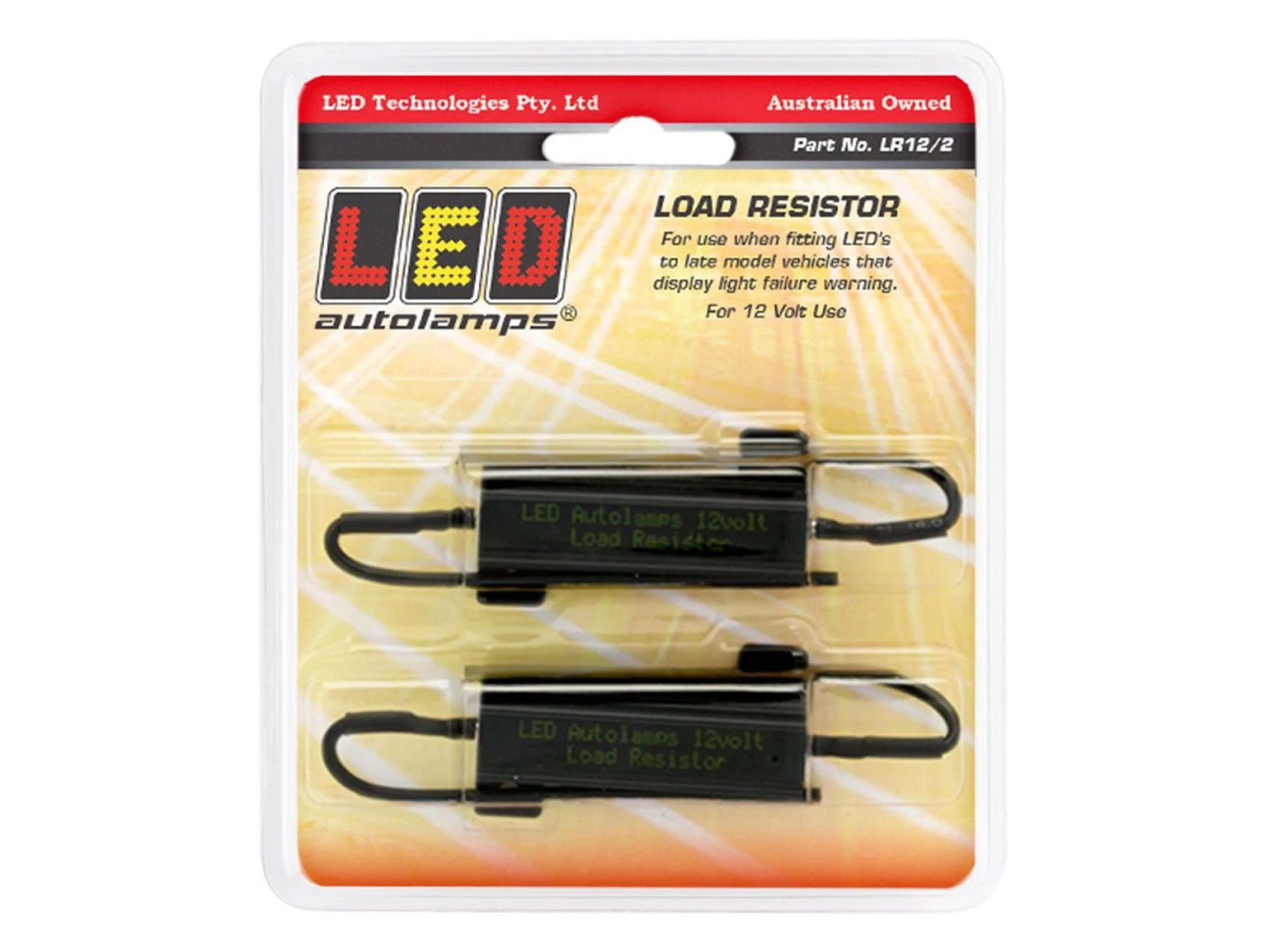

LED Autolamps 12V Load Resistor In Blister Pack Of 2 - LR12/2

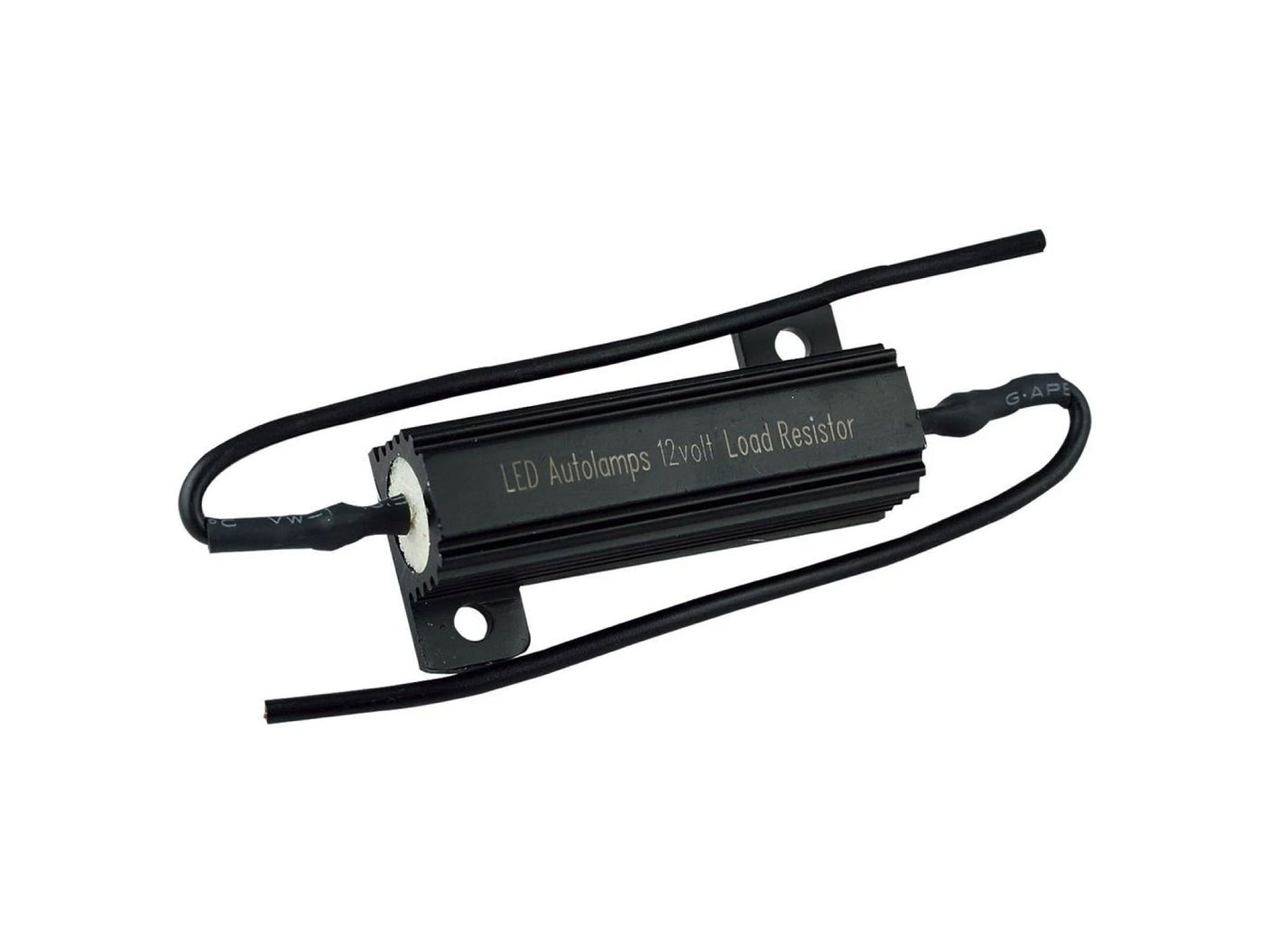

12V 50W Load Resistors – 6 Ohm (Twin Pack)

These IP67-rated dummy load resistors are designed to simulate the current draw of standard 21W halogen globes, allowing you to run LED lights on vehicles with electronic systems that aren't LED-compatible. Ideal for indicator and brake light circuits.

Product Details:

• 12 Volt Operation
• Power Rating: 50 Watts
• Resistance: 6Ω (Ohms)
• Includes: 2 x Load Resistors (Blister Twin Pack)
• Mounting: Dual screw points for secure installation
• IP67 Rated: Waterproof and dustproof

Important Usage Notes:

• Warning: Resistors get extremely hot during use – up to 170°C
• Must be mounted on metal surfaces to dissipate heat safely
• Do NOT mount on plastic, painted surfaces, wiring, or near hoses
• Use crimp connectors to wire the resistor inline with the lamp wiring (not to vehicle chassis)

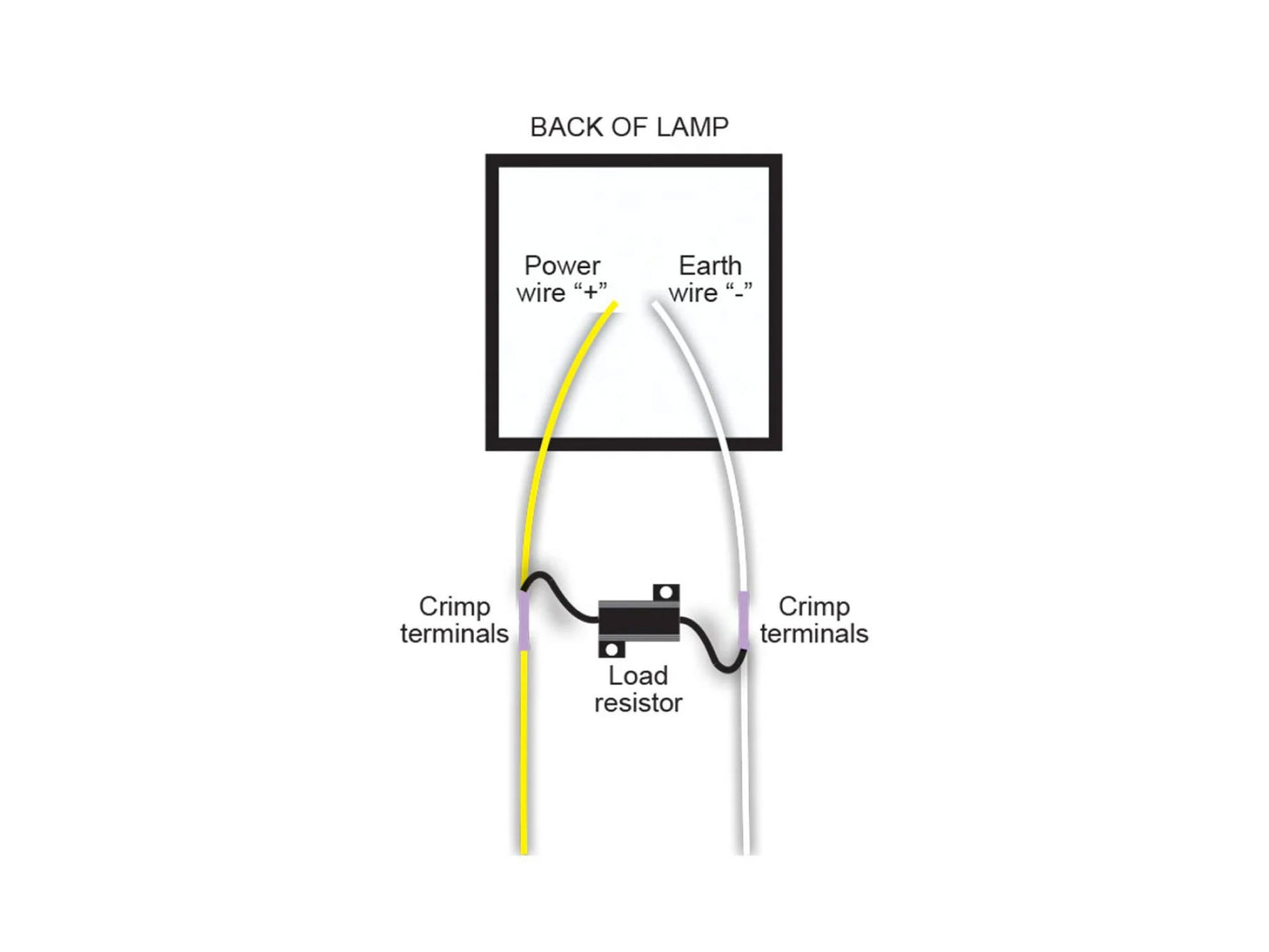

Wiring Instructions:

• Indicator Circuit: Connect one lead to Yellow (positive), one to White (ground)
• Brake Circuit: Connect one lead to Red (positive), one to White (ground)

Correct Fitment:

• Always wire between the input wires of the lamp
• Never connect the resistor directly to vehicle chassis
• Mount securely using screw holes to metal frame

Great for eliminating hyper-flashing, bulb-out warnings, or compatibility errors when upgrading to LED lighting.
