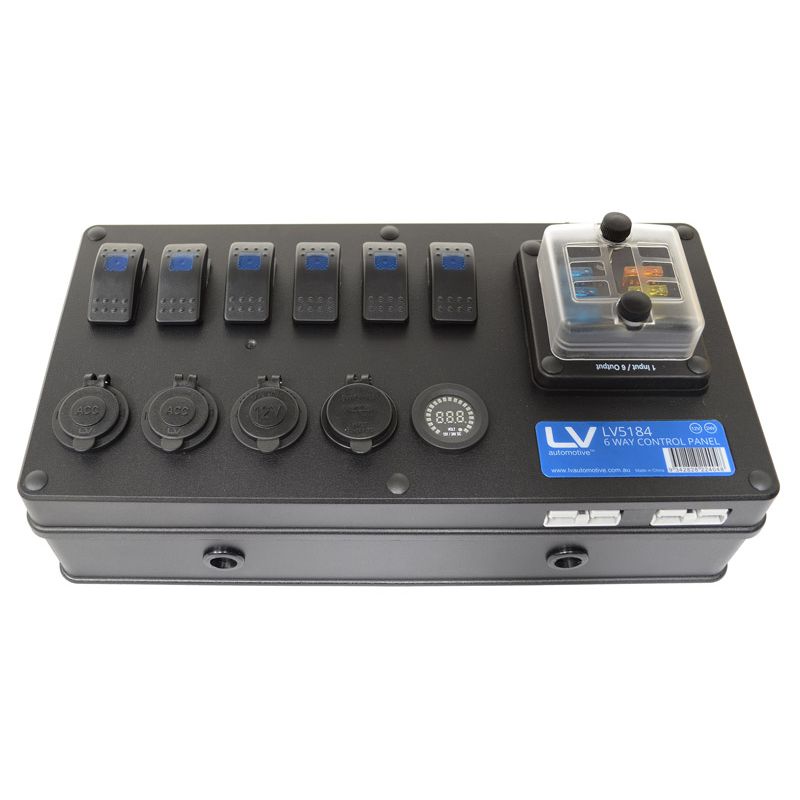

12/24V 6-Way Control Panel Switch with Dual DC, Engel, Voltmeter & Anderson Sockets

12/24V 6-Way Control Panel with DC, Engel, Voltmeter & Anderson Sockets

Manage all your 12V and 24V accessories with this versatile 6-way switch panel. Designed for 4WDs, caravans, RVs, and marine setups, it provides multiple output options, power monitoring, and protection in one easy-to-install unit.

Features:

• 2 x DC accessory sockets (12V/20A or 24V/10A)
• 1 x Engel socket output (12V/20A or 24V/10A)
• 2 x 50A Anderson type sockets
• Dual USB output (QC3.0A & USB-C 4.0A)
• 12/24V LED voltmeter display
• 6-way rocker switches with blue illumination
• 6-way fuse box rated 32V/100A max
• Internal dual bus bars (150A 32V DC max)
• Internal wiring: 10AWG & 14AWG
• Pre-installed fuses: 5A x 1, 15A x 3, 20A x 1, 30A x 2

Specifications:

• Input Power: 12/24V via 2 x 50A Anderson type connectors
• Shell Material: Black Nylon

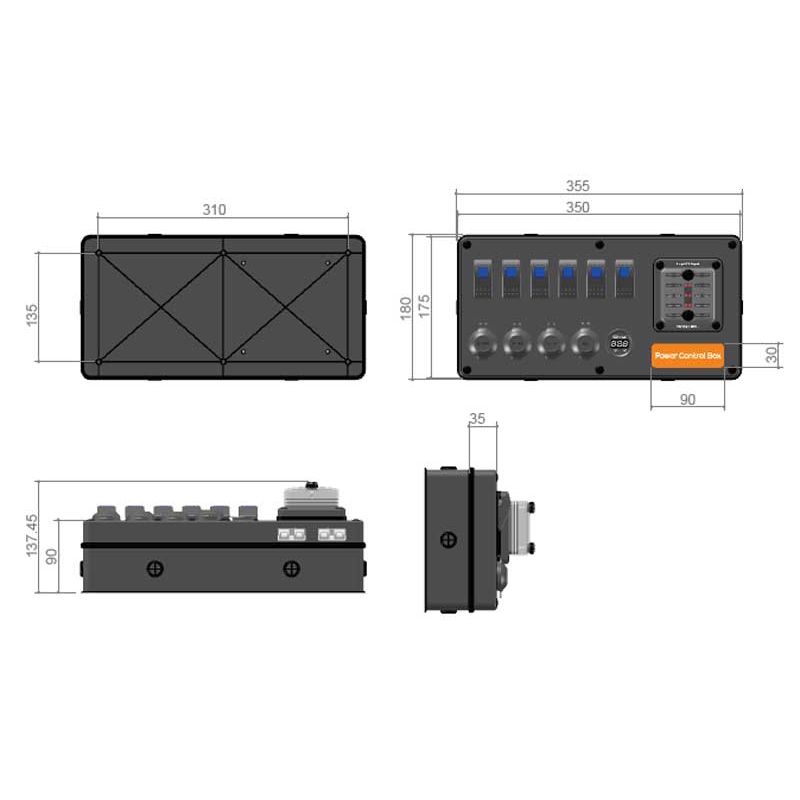

• Dimensions: 355mm (L) x 180mm (W) x 138mm (H)

Applications:

• 4WDs
• Caravans
• RVs
• Marine setups

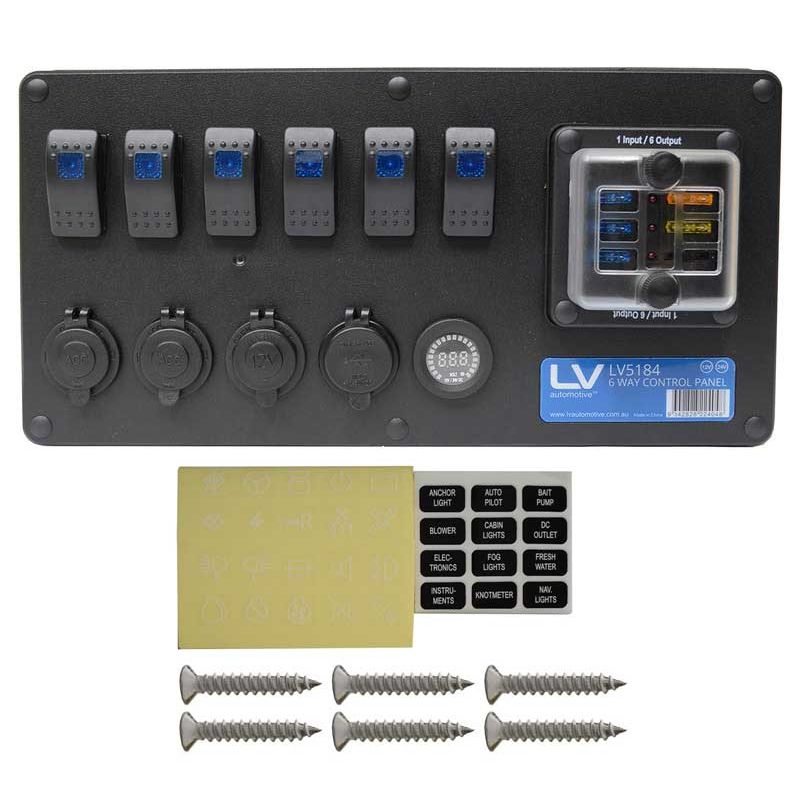

Kit Includes:

• 1 x 6-Way Switch Control Panel
• 6 x Mounting Screws
• Sticker Set for switch labeling

Take control of your off-grid power system with this all-in-one, heavy-duty switch panel.
