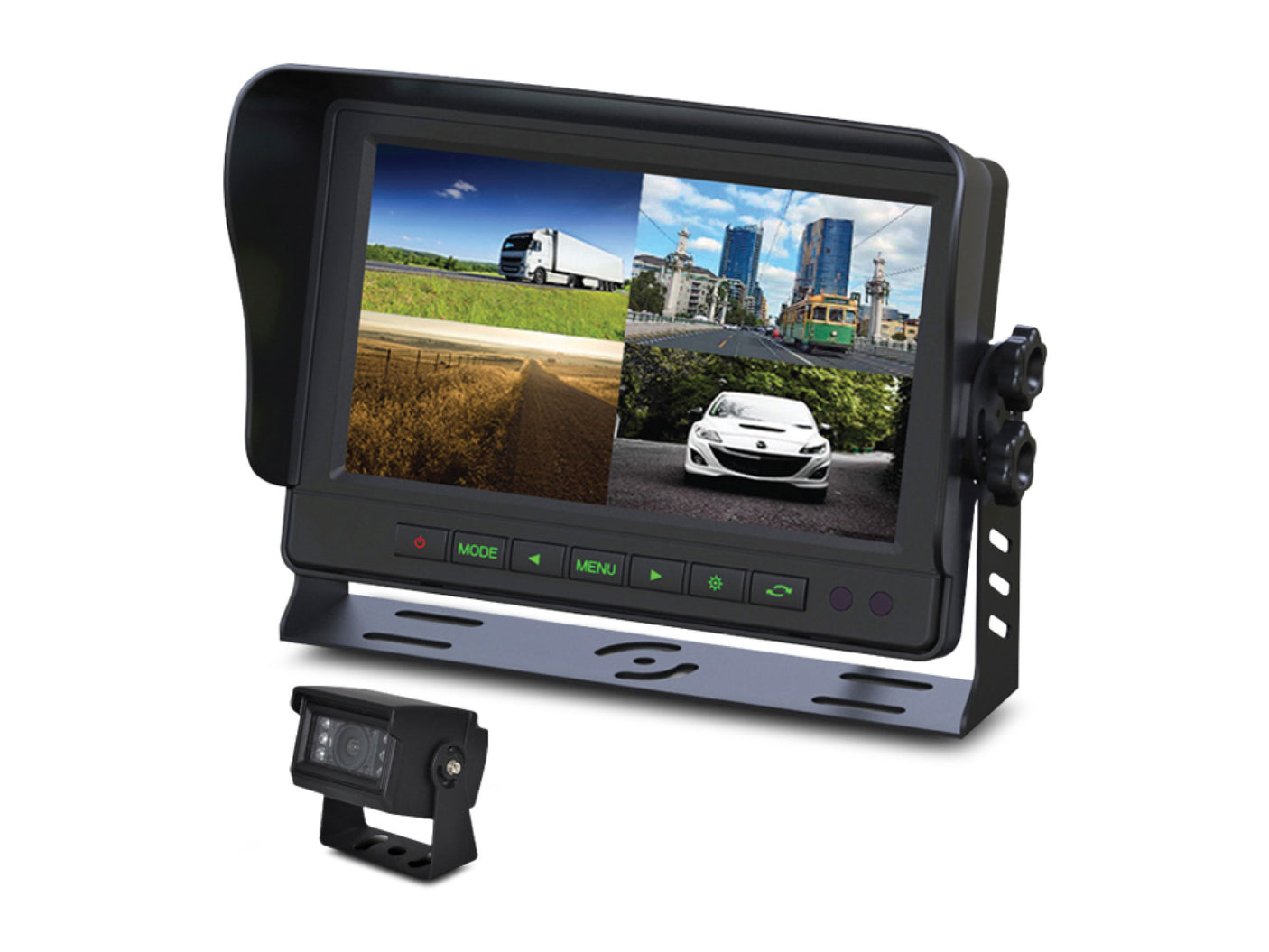

Gator GT904SD 9″ Commercial Grade Dash Mount Quad Display Reverse Camera Kit
Gator GT904SD 9″ Commercial Grade Dash Mount Quad Display Reverse Camera Kit is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Delivery available Australia wide, shipping is calculated at checkout.
9″ Quad Display Monitor Reverse Camera Kit
Gator GT904SD can make it a lot easier for drivers to operate heavy-duty trucks, mining loaders and industrial or construction; hence, safer for people and infrastructure alike. Coming from a wide array of innovative enhanced vision systems for superior and all-round vehicle awareness, GT904SD helps promote safety across the board with its ability to provide much greater vantage and awareness around the vehicle, enabling drivers or heavy equipment operators do what they do best with ease and peace of mind.
On top of it, this will also keep untoward incidents from happening which may result to loss of lives or damage to properties, particularly in high-risk work areas such as construction sites. GT904SD comes with a huge 9″ heavy duty quad display monitor with adjustable metal mounting bracket, battery-operated IR remote control, small footprint heavy duty camera, removable sunshade for the display and a 6-metre input harness. The kit features PROLINK II screw connection cables which are dustproof and waterproof resulting in an extremely reliable connection to withstand the harsh operating environments.
Features:
- Provides unobstructed rear view of the vehicle for safer reversing and peace of mind
- 9″ commercial grade quad display that can display up to 4 cameras at one time
- Small footprint commercial grade reverse camera with 10 IR LEDs for night vision
- QUAD video camera input-enabled allowing additional cameras to be added to the system
- Rated IP69K dust and waterproof camera that withstands harsh environment condition
- High/low voltage cut off and built in circuit protection
- PROLINK II screw connection cables for reliable dustproof and waterproof connections
- 12 & 24V Compatible suitable for commercial vehicles, 4wds and cars
- Optional Windscreen Suction Mount Available (GTSM1)
- Easy wired installation for DIY enthusiasts
Specifications:
-
Monitor Specifications:
- Monitor Size: 9.0″
- Mounting Type: Adjustable Metal Bracket
- Resolution / Brightness: 1024(H) X 600(V) / 450 Candela
- AHD: No
- Input Voltage: 12V/24V
- Video Inputs: 4
- Display Configuration (Single, Dual or Quad): Single, Dual or Quad
- Image Flip: Yes
- Display Image Adjustment:
- Brightness: Yes
- Contrast: Yes
- Saturation: Yes
- Reverse (Mirror) Image: Yes
- PAL or NTSC: PAL/NTSC
- Connection Type: PROLINK II
- Dimensions (Monitor Only): 155mm(H) X 241mm(W) X 30mm(D)
- Dimensions (Monitor & Bracket): 184mm(H) X 263mm(W) X 73mm(D) [With Bracket in Vertical Position & Sunshade Fitted]
- Other Features: N/A
-
Camera Specifications:
- Mount Type: Surface Mount U-Shaped Bracket
- Camera Type (Reverse or Rearview): Rear
- AHD / Resolution: No / N/A
- Camera Angle: 120 Degree
- Image Sensor (CMOS or CCD): CMOS
- Parking Gridlines: No
- PAL or NTSC: NTSC
- IP Rating: IP69K
- Input Voltage: 12V
- Minimum Illumination: 0LUX
- Number of LED’s 10
- LED Type: Infrared
- Plug Type Camera End: PROLINK II
- Plug Type Monitor End: PROLINK II
- Video Cable Length: 400mm
- Reverse Trigger on Video Cable: N/A
- Dimensions (Camera Only): 42mm(H) X 52mm(W) X 55mm(L)
- Dimensions (Camera & Bracket): 60mm(H) X 63mm(W) X 55mm(L)
-
Kit Specifications:
- Wired or Wireless: Wired
What’s in The Box:
- 9″ Monitor
- Adjustable Metal Bracket for Monitor
- 4x Thumbscrews
- Removable Sunshade
- IR Remote Control with CR2025 Battery
- GT14SD – GT Series Smaller Footprint Heavy Duty Camera
- 2M(L) Input Harness
- 10M PROLINK II extension Cable
- User Manual
