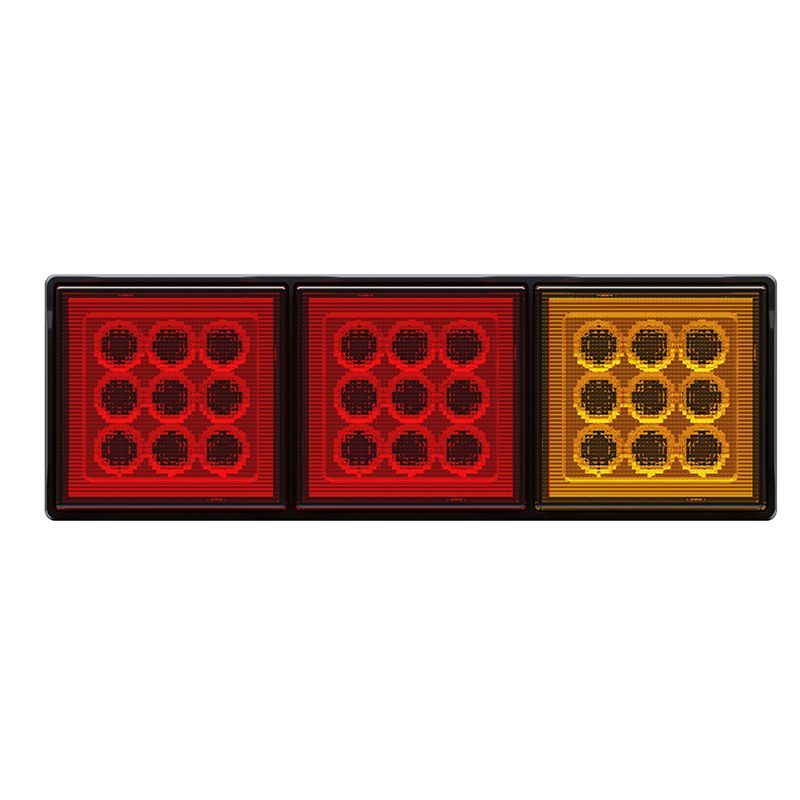

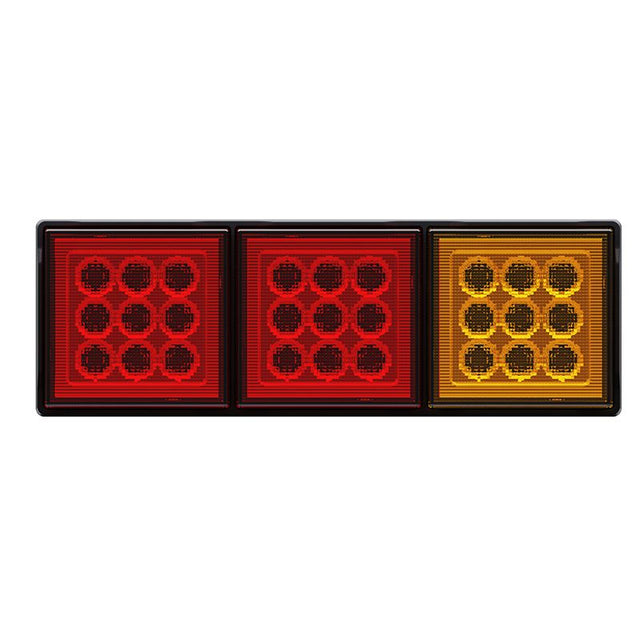

Roadvision BR302ARR LED Rear Combination Lamp – Stop/Tail/Indicator/Reflector (282x95mm)

SOLD INDIVIDUALLY

Roadvision BR302ARR LED Rear Combination Lamp – 282x95mm

The BR302ARR is the perfect rear combination lamp for space-conscious installations without compromising on safety or performance. Designed for trailers, 4WDs, and utes, this light features Stop, Tail, Indicator, and Reflector functions with long-lasting LED technology in a compact, rugged housing.

Functions: Stop / Tail / Indicator / Reflector

Key Features:

• ADR Approved – All Functions Compliant
• Compact Triple Panel Design (282mm wide)
• Grey Glowtech styling with high-intensity output
• Multi-volt 10–30V DC Input
• Surface Mount Installation – 116mm bolt spacing
• Impact-resistant Polycarbonate Lens
• Fully Sealed – Dustproof & Waterproof (IP67)
• 100,000 Hour Rated LED Lifespan

Specifications:

• Voltage: 10–30V DC
• LED Count: 9 x Indicator, 18 x Stop/Tail
• Current Draw @13.8V: Indicator – 0.1A, Stop – 0.16A, Tail – 0.03A

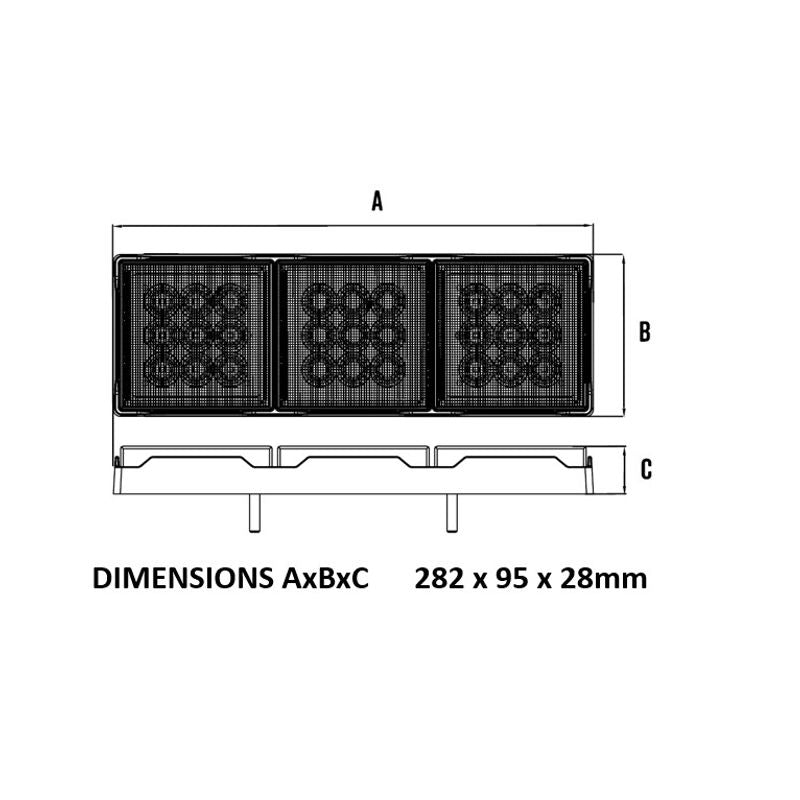

• Dimensions: 282mm (L) × 95mm (H) × 28mm (D)
• Mounting Hole Centres: 116mm
• Cable: 300mm Tinned Copper
• Lens: Polycarbonate
  Housing: High-impact ABS
• ADR Approval: CTA-061852

Wiring:
White – Earth
Red – Stop
Brown – Tail
Yellow – Indicator

Package Includes:

• 1 x BR302ARR LED Rear Combination Lamp
