Roadvision BR302ARW LED Rear Combination Lamp – Stop/Tail/Indicator/Reverse/Reflector (282x95mm)

SOLD INDIVIDUALLY

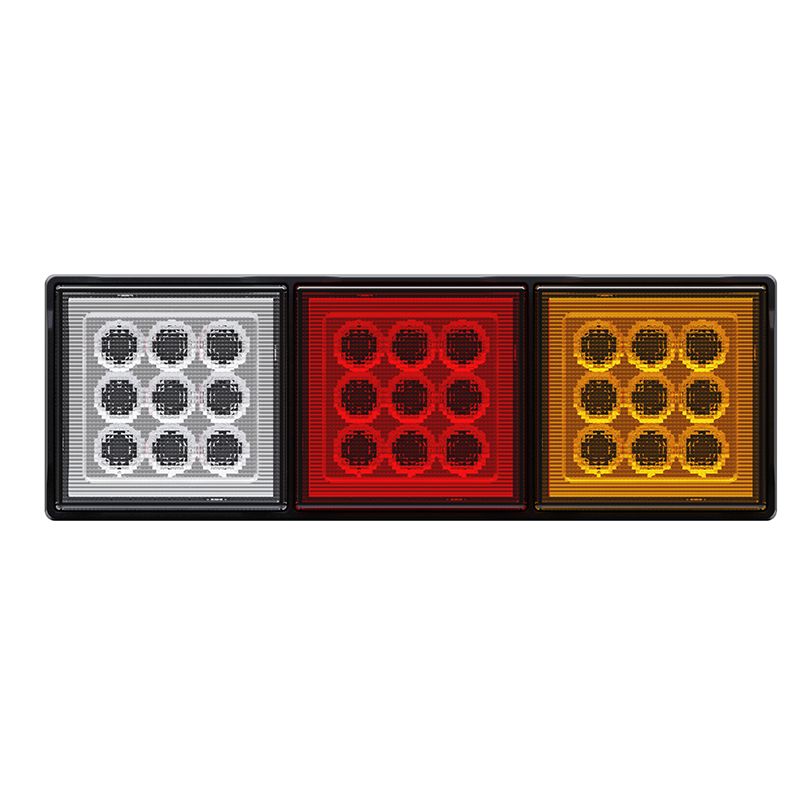

Roadvision BR302ARW LED Rear Combination Lamp – 282x95mm

The Roadvision BR302ARW is a compact and rugged LED rear lamp, purpose-built for 4WDs, light trucks, trailers, and off-road setups. Featuring Stop, Tail, Indicator, Reverse, and Reflector functions, it delivers outstanding performance in a durable, fully sealed housing that’s both ADR compliant and built to last.

Functions: Stop / Tail / Indicator / Reverse / Reflector

Key Features:

• Compact Triple Panel LED Layout (282mm width)
• ADR Approved – All Functions Compliant
• 10–30V Multi-Volt Input – Low Power Draw
• 100,000 Hour LED Lifespan – Maintenance-Free
• Polycarbonate Lens & High Impact ABS Housing
• Simple Surface Mount Design – 116mm Hole Centres
• Fully Sealed Against Dust & Water – IP67 Rated

Specifications:

• Input Voltage: 10–30V DC
• LED Count: 9 x Indicator, 9 x Stop/Tail, 9 x Reverse
• Current Draw @ 13.8V: Indicator – 0.1A, Stop – 0.08A, Tail – 0.02A, Reverse – 0.1A
• Overall Dimensions: 282mm (L) × 95mm (H) × 28mm (D)
• Mounting Hole Centres: 116mm
• Cable: 300mm Tinned Copper
• ADR Approval: CTA-061851

Wiring:
White – Earth
Red – Stop
Brown – Tail
Yellow – Indicator
Black – Reverse

Package Includes:

• 1 × BR302ARW LED Rear Combination Lamp
