Roadvision BR392ARR LED Rear Combination Lamp – Stop/Tail/Indicator/Reflector (390x105mm)

SOLD INDIVIDUALLY

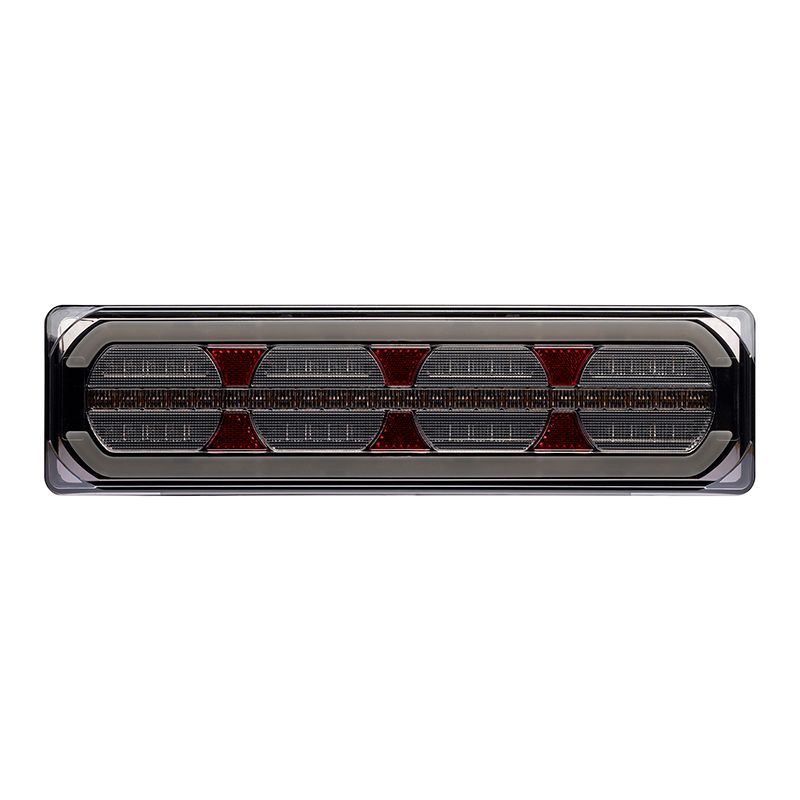

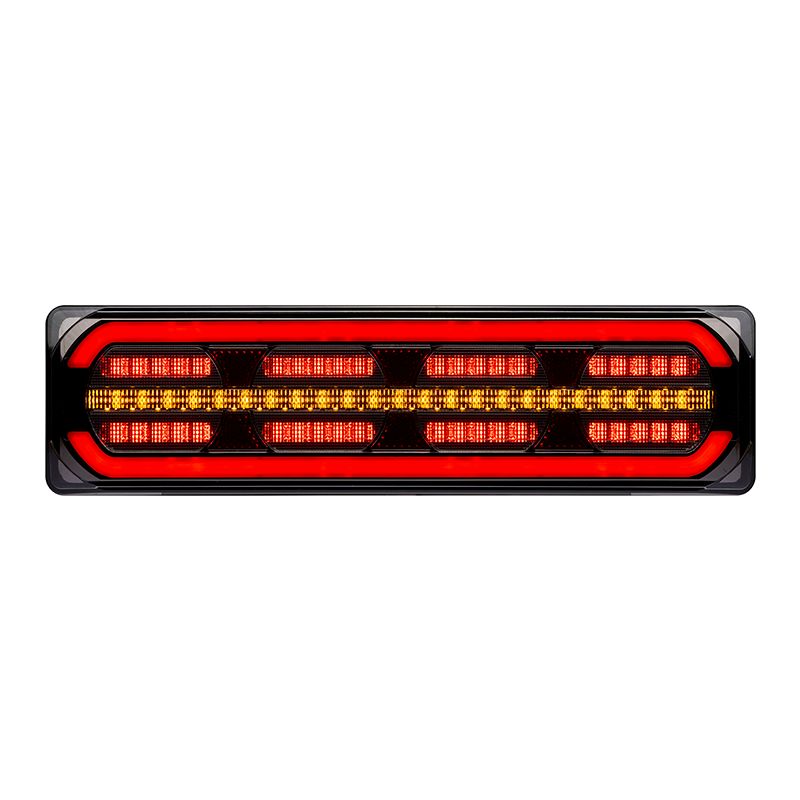

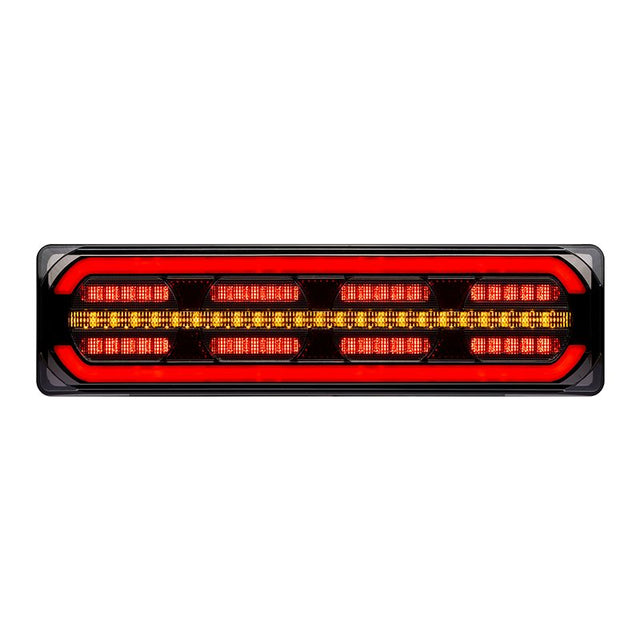

Roadvision BR392ARR LED Rear Combination Lamp – 390x105mm

Premium in both performance and appearance, the BR392ARR delivers outstanding rear lighting with Stop, Tail, Indicator, and Reflector functionality. With a stylish Grey Glowtech tail light, sequential indicators, and Roadvision’s signature gunmetal finish, it’s the perfect choice for modern 4WDs, trailers, and commercial builds.

Functions: Stop / Tail / Indicator / Reflector

Key Features:

• Grey Glowtech Tail Light with Sequential Indicators
• Integrated Retro Reflector for Added Safety
• Multi-volt 10–30V DC Input – Low Current Draw
• ADR Approved for All Functions
• 100,000 Hour Rated LED Lifespan with Solid-State Tech
• Surface Mount Design – Simple Installation
• Polycarbonate Lens & Housing – Lightweight and Tough
• Gunmetal Grey Chrome Finish with Mild Tinted Lens

Specifications:

• Voltage: 10–30V DC
• LED Count: 24 x Indicator, 40 x Stop, 54 x Tail
• Current Draw @ 13.8V: Indicator – 0.37A, Stop – 0.27A, Tail – 0.18A

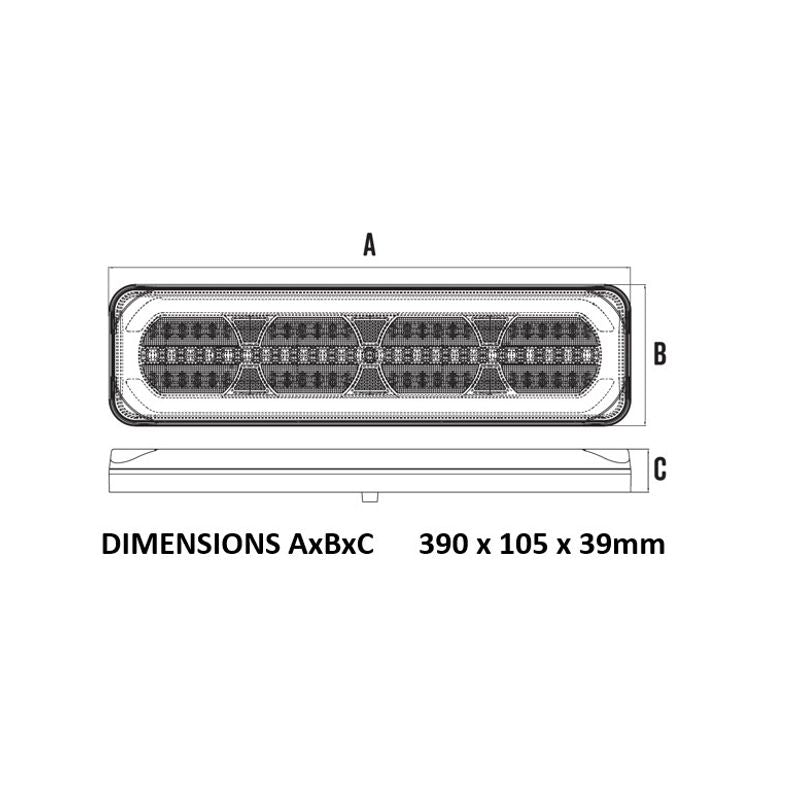

• Dimensions: 390mm (L) x 105mm (H) x 39mm (D)
• Mounting Hole Centres: 185–225mm
• Cable: 300mm Tinned Copper
• Lens & Housing: Polycarbonate
• ADR Approval: CTA-061826

Wiring:
White – Earth, Red – Stop, Brown – Tail, Yellow – Indicator Left, Green – Indicator Right

Package Includes:

• 1 x BR392ARR LED Rear Combination Lamp
