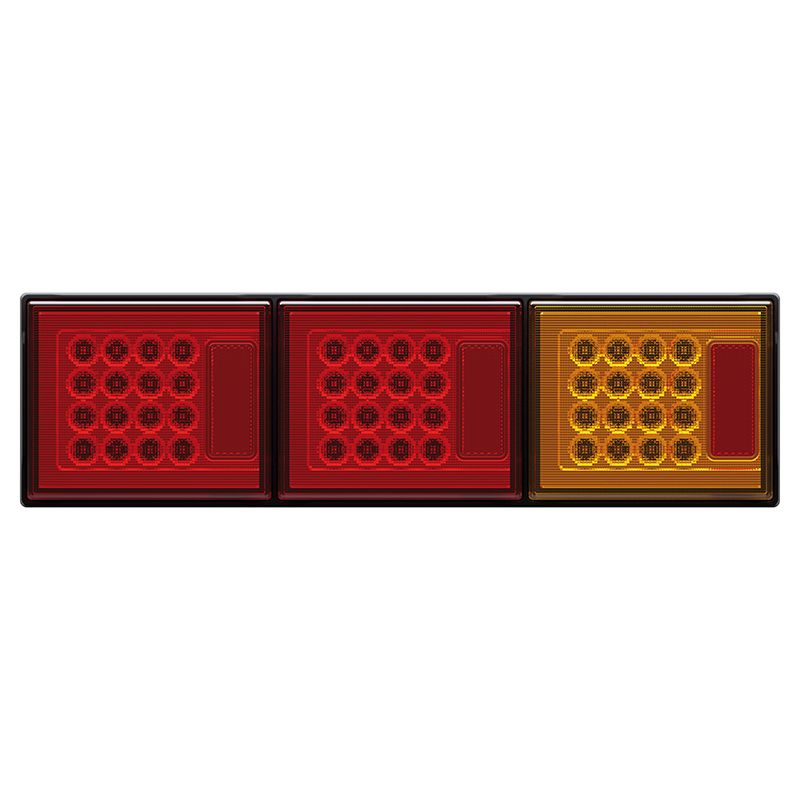

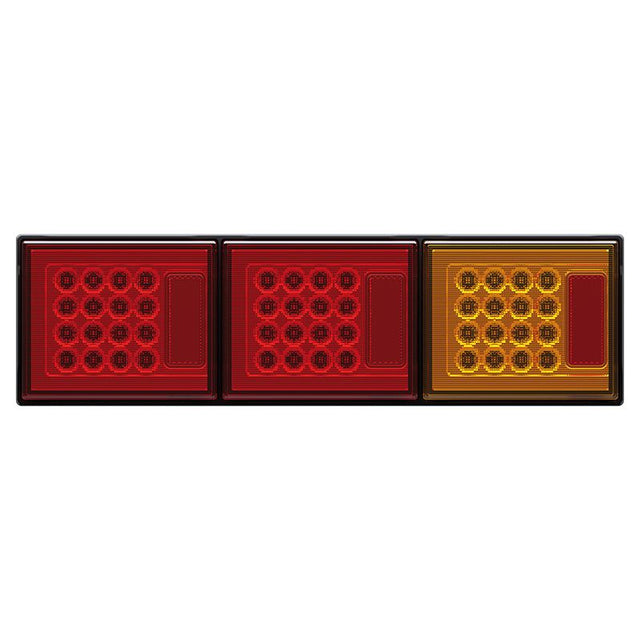

Roadvision BR502ARR LED Rear Combination Lamp – Stop/Tail/Indicator/Reflector (460x130mm)

SOLD INDIVIDUALLY

Roadvision BR502ARR LED Rear Combination Lamp – 460x130mm

The BR502ARR combines rugged durability with efficient LED performance, making it ideal for compact trailer setups, 4WDs, and utility vehicles. This rear combination lamp delivers ADR-approved Stop, Tail, Indicator, and Reflector functions in a clean, low-profile design with Grey Glowtech styling and sequential indicators.

Functions: Stop / Tail / Indicator / Reflector

Key Features:

• Compact mini jumbo triple-panel LED rear lamp
• Grey Glowtech styling with sequential indicators
• Multi-volt 10–30V DC input
• ADR Approved for all functions
• Retro reflector integrated into outer lens
• 100,000+ hour solid-state LED lifespan
• Surface mount design – standard 280mm bolt centres
• Impact-resistant polycarbonate lens & ABS housing

Specifications:

• Voltage: 10–30V DC
• LEDs: 16 x Indicator, 32 x Stop/Tail
• Current Draw @13.8V: Indicator – 0.11A, Stop – 0.23A, Tail – 0.04A
• Dimensions: 460mm (L) x 130mm (H) x 33mm (D)
• Mounting Hole Centres: 280mm
• Cable: 300mm tinned copper
• Lens: Polycarbonate
• Housing: High-impact ABS
• ADR Approval: CTA-061853

Wiring:
White – Earth
Red – Stop
Brown – Tail
Yellow – Indicator

Package Includes:

• 1 x BR502ARR LED Rear Combination Lamp
