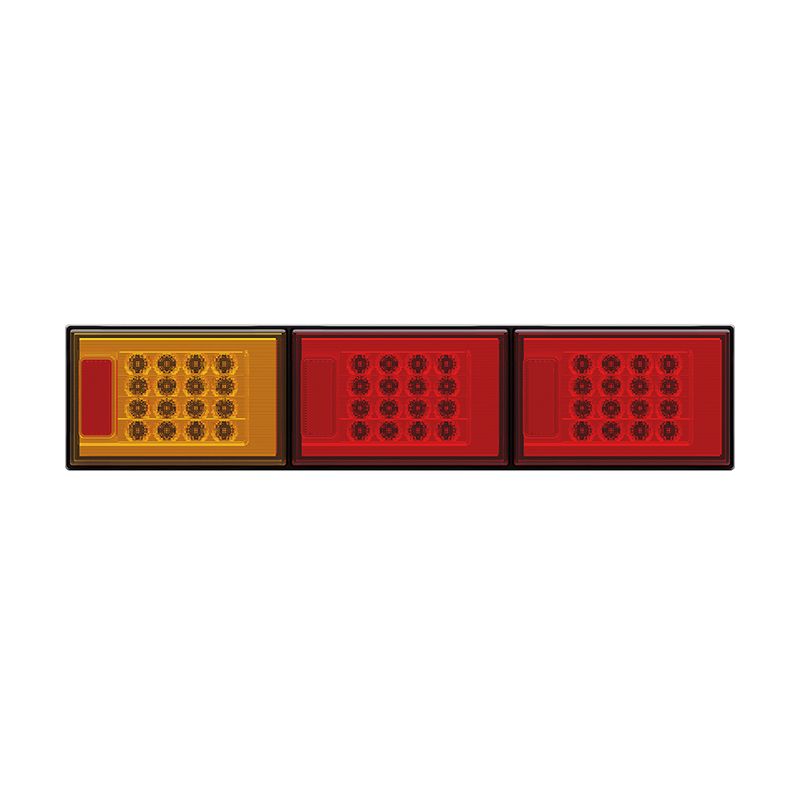

Roadvision BR602ARR LED Rear Combination Lamp – Stop/Tail/Indicator/Reflector (604x132mm Jumbo Style)

SOLD INDIVIDUALLY

Roadvision BR602ARR LED Rear Combination Lamp – 604x132mm Jumbo Style

The BR602ARR is a heavy-duty LED rear combination lamp designed for maximum performance and durability in demanding environments. With integrated Stop, Tail, Indicator, and Reflector functions, this surface-mount unit is a perfect retrofit for jumbo-style trailer or truck lighting.

Functions: Stop / Tail / Indicator / Reflector

Key Features:

• ADR Approved for All Functions
• Multi-volt 10–30V DC Input – Low Current Draw
• 100,000 Hour Rated LED Lifespan
• Surface Mount Design – Easy Retrofit Installation
• Integrated Retro Reflectors
• Rugged High Impact ABS Housing
• Virtually Unbreakable Polycarbonate Lens
• Retrofits Existing Jumbo Style Lamps

Specifications:

• Voltage: 10–30V DC
• LED Count: 16 x Indicator, 32 x Stop/Tail
• Current Draw @ 13.8V: Indicator – 0.11A, Stop – 0.23A, Tail – 0.04A

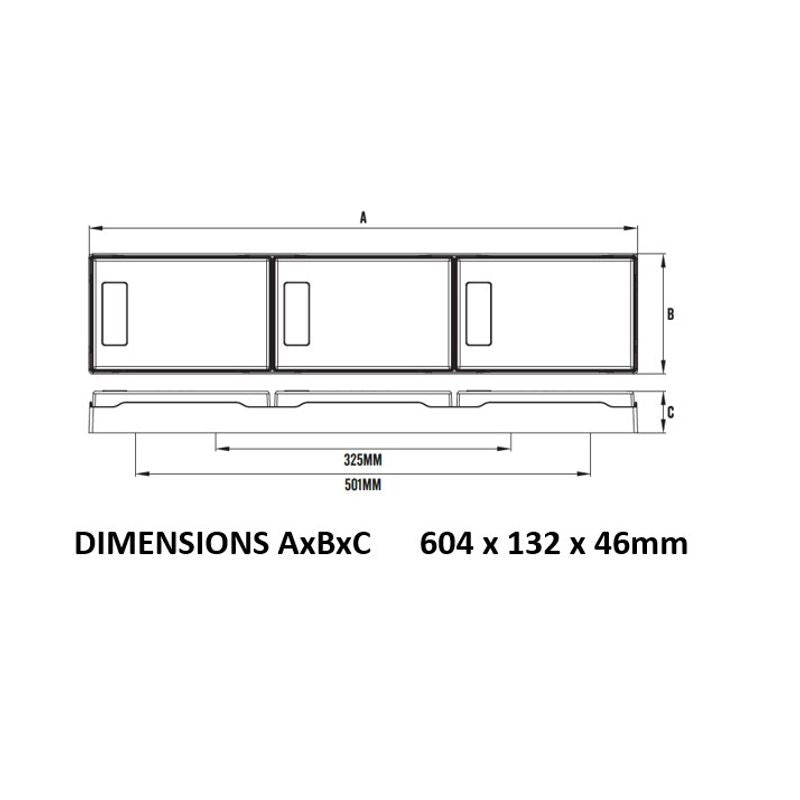

• Dimensions: 604mm (L) x 132mm (H) x 46mm (D)
• Mounting Hole Centres: 501mm & 325mm
• Cable Length: 300mm (Tinned Copper)
• Lens Construction: Polycarbonate
• Housing: High Impact ABS
• ADR Approval: CTA-061847

Wiring:
White – Earth, Red – Stop, Brown – Tail, Yellow – Indicator

Package Includes:

• 1 x BR602ARR LED Rear Combination Lamp
