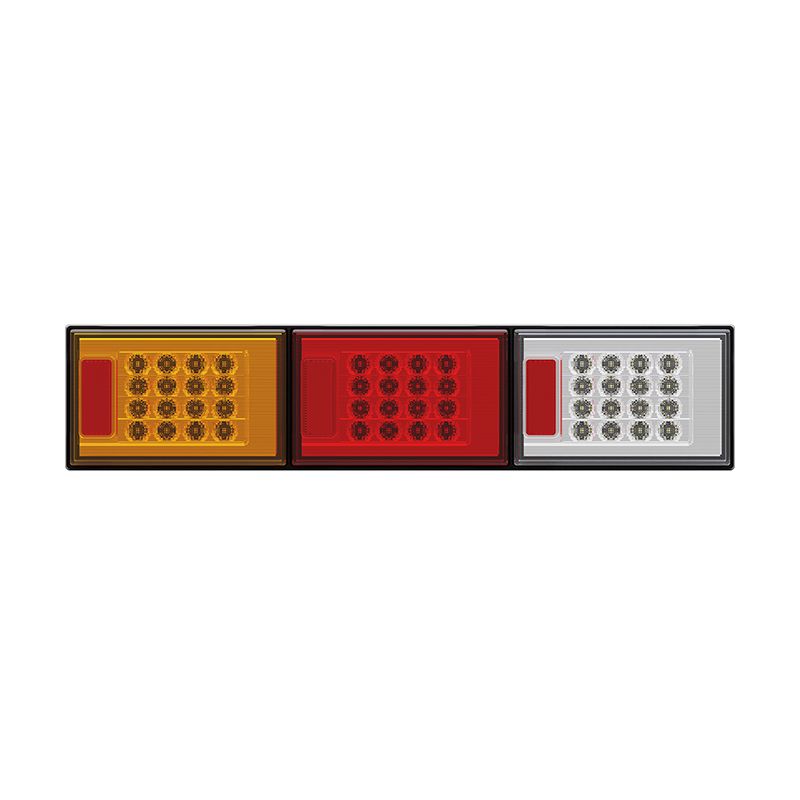

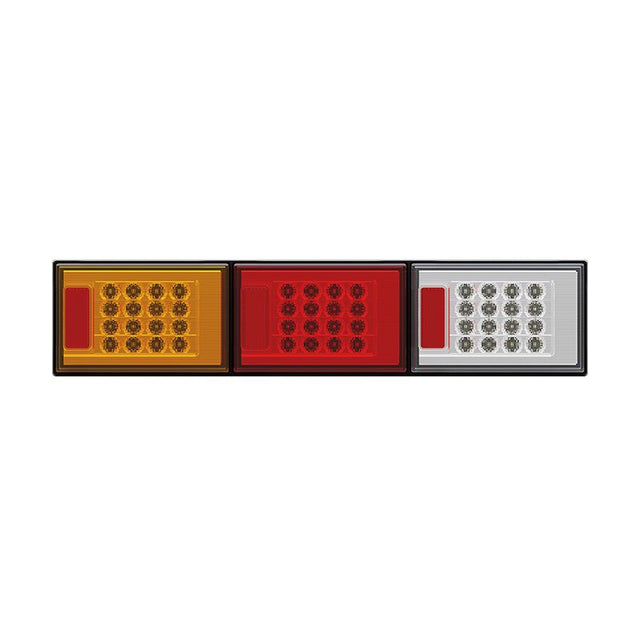

Roadvision BR602ARW LED Rear Combination Lamp – Stop/Tail/Indicator/Reverse/Reflector (604x132mm Jumbo Style)

SOLD INDIVIDUALLY

Roadvision BR602ARW LED Rear Combination Lamp – 604x132mm Jumbo Style

The BR602ARW from Roadvision is the ultimate rear lighting solution for trailers, trucks, and commercial vehicles. With integrated Stop, Tail, Indicator, Reverse, and Reflector functionality, this jumbo-sized lamp features modern styling, sequential indicators, and the rugged build quality Roadvision is known for.

Functions: Stop / Tail / Indicator / Reverse / Reflector

Key Features:

• Extra-wide 604mm rear lamp with full 5-function output
• Grey Glowtech styling with sequential indicator flash
• Multi-volt 10–30V DC input with low current draw
• ADR approved for all functions
• 100,000+ hour rated LED lifespan with solid-state reliability
• Impact-resistant polycarbonate lens and ABS housing
• Surface mount design with standard jumbo bolt pattern

Specifications:

• Voltage: 10–30V DC
• LED Count: 16 x Indicator, 16 x Stop/Tail, 16 x Reverse
• Current Draw @13.8V: Indicator – 0.11A, Stop – 0.11A, Tail – 0.02A, Reverse – 0.11A

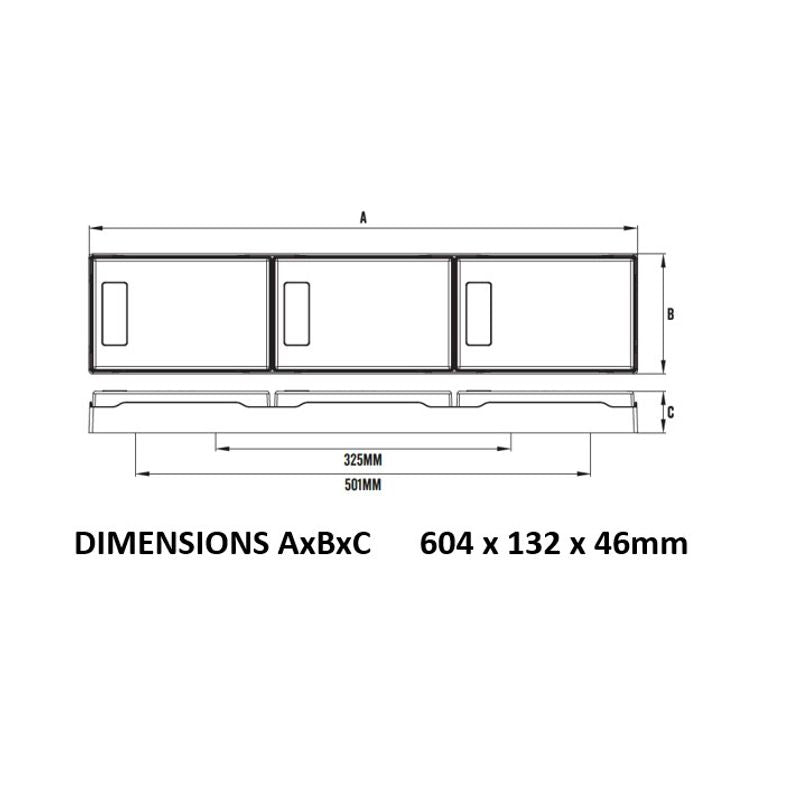

• Dimensions: 604mm (L) x 132mm (H) x 46mm (D)
• Mounting Hole Centres: 501mm & 325mm
• Cable Length: 300mm Tinned Copper
• Lens: Polycarbonate
  Housing: High-Impact ABS
• ADR Approval: CTA-061849

Wiring:
White – Earth, Red – Stop, Brown – Tail, Yellow – Indicator, Black – Reverse

Package Includes:

• 1 x BR602ARW LED Rear Combination Lamp
