RoadVision  |  SKU: RBL6220C

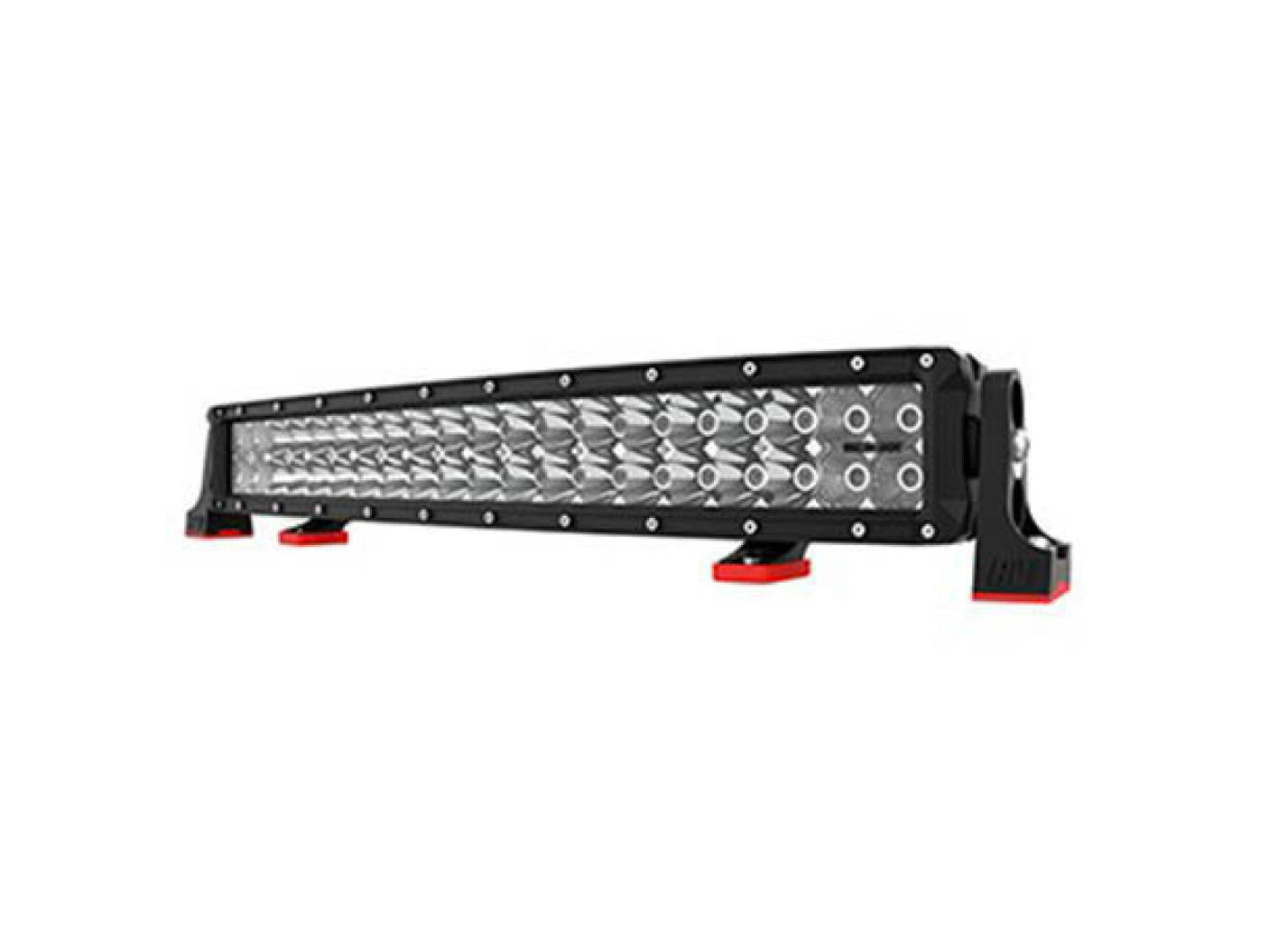

RoadVision Curved LED light bar 22" DCX2 series

$349.00 $428.89
Dispatch Notice


This item is stocked at an external warehouse. Please allow 2 business days to dispatch.


Delivery and Shipping

Delivery available Australia wide, shipping is calculated at checkout.

LED Bar Light 22" DCX2 Series Curved Combo Beam 10-30V 40 x 3W Osram High Lux LEDs 120W 10800lm IP67 Slide & End Mounts Roadvision Black Label

The Roadvision DCX2 Series are the next generation in dual row curved LED light bars. Producing up to a massive 25920lm of light output, the DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Designed to follow the contour of your vehicle, the curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DCX2 Series is available in combination beam patterns from 22” to 50” providing a perfect mix of forward penetration and additional roadside illumination from the curved radius housing. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest bars in our line-up.

ROADVISION LED BAR LIGHT 22 DCX2 SERIES CURVED COMBO BEAM 10-30V 40 X 3W OSRAM HIGH LUX LEDS 120W 10800LM IP67 SLIDE & END MOUNTS ROADVISION BLACK LA"



RANGE FEATURES

  • DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
  • 3W Osram Hi-Lux LED’s produce super white light close to daylight
  • Curved bar produces a wider beam angle for improved roadside illumination
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Soft start, PWM dimmable & advanced thermal management technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
  • 9 position adjustable anti-vibration end mount system & low profile slide mounts
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

ROADVISION LED BAR LIGHT 22 DCX2 SERIES CURVED COMBO BEAM 10-30V 40 X 3W OSRAM HIGH LUX LEDS 120W 10800LM IP67 SLIDE & END MOUNTS ROADVISION BLACK LA"

Specifications

Part Number RBL6220C
Description DCX2 Series 22" Curved Bar 40 LED
Beam Type Combo Beam
Lumens Light Output (Effective) 10800lm
Beam Distance 708m
Total Watts 120W
Light Source 40x3 Watt Osram LED's
Input Voltage 10-30V DC
Current Draw Amps 6.7A @ 13.8V
Dimensions AxBxC 563x75x78.5mm
Bar Length 22" (563mm)
Wiring 2 Pin Deutsch Plug
Lux @ 10m 1316 Lux
Meters @ 1 Lux 354m
Meters @ 0.5 Lux 708m
