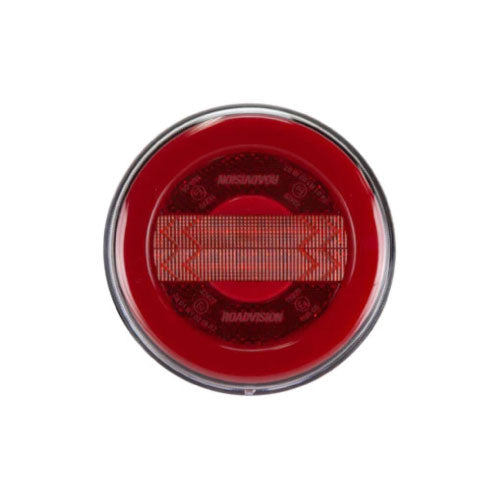

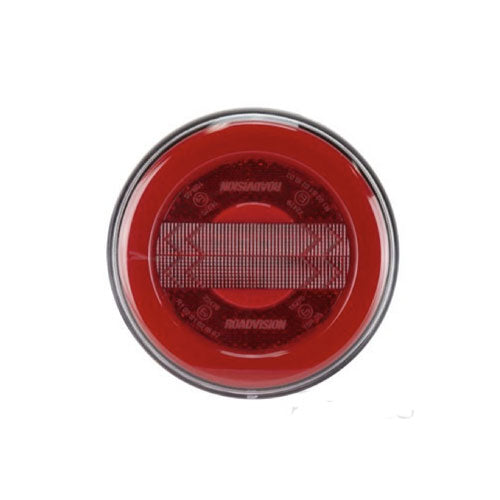

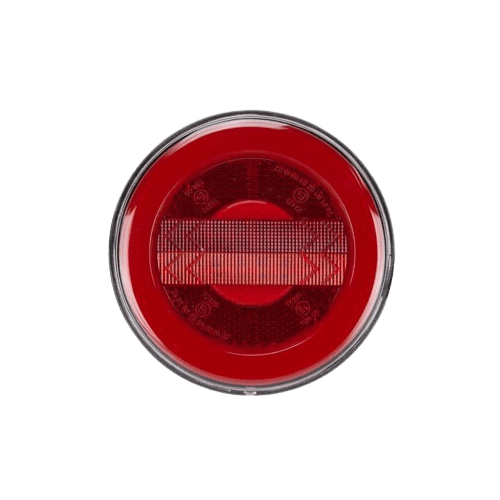

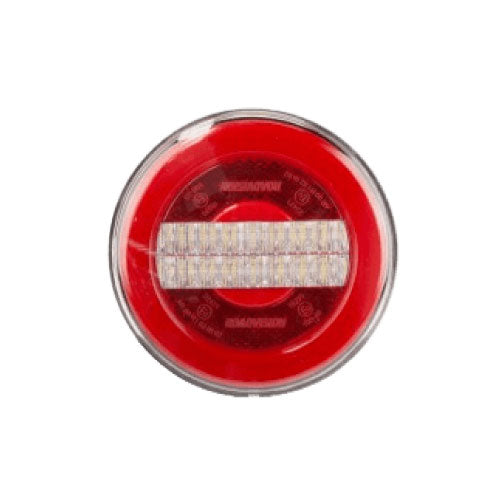

RoadVison BR122 Series Round LED Tail Lights

Name: RoadVison BR122 Series Round LED Tail Lights
Brand: RoadVision
SKU: BR122RR
Price: 79.65 AUD
Availability: InStock

$79.65 ~~$102.94~~

Function

Product variants

Dispatch Notice

This item is stocked at an external warehouse. Please allow 2 business days to dispatch.

Delivery and Shipping

Delivery available Australia wide, shipping is calculated at checkout.

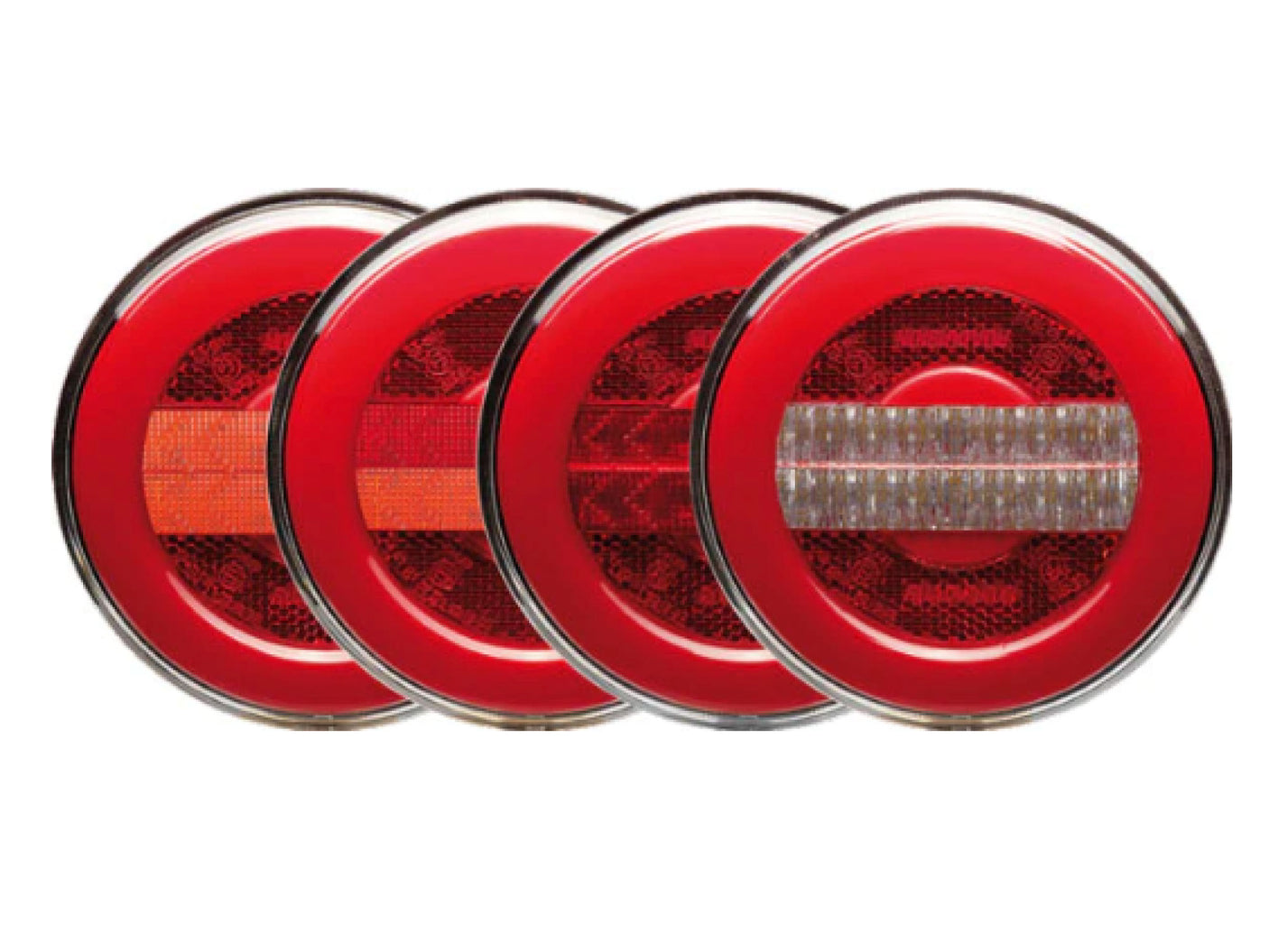

ROADVISION’s BR122 Series round LED signal lamps are a versatile stand alone or combination lamp solution, featuring Glow Tech tail lights they have both a contemporary yet classic look! Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with unbreakable PMMA lenses and an extremely tough housing manufactured from high impact ABS, the BR122 Series will survive the toughest environments. They are dust, water proof and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR122 Series, it’s FIT and FORGET.

MULTI-VOLT
10-30 VOLT

PMMA LENS

HIGH IMPACT HOUSING

ADR APPROVED

WATERPROOF

5 YEAR WARRANTY

RANGE FEATURES

Multi-volt 10-30V DC input & low current draw
Glow Tech tail light
100,000 hour LED life span with solid state technology
Maintenance free
High impact ABS housing and PMMA lens
Water and dust proof
Pre-wired with 300mm of sheathed tinned copper cable
Simple surface mount design
ADR/ECE approved for all functions

RANGE DIMENSIONS

RANGE SPECIFICATIONS

Part Number	BR122ARR	BR122RR	BR122RW	BR122AR
Input Voltage	10-30 VDC	10-30 VDC	10-30 VDC	10-30 VDC
Number of LEDS	Indicator - 8 LEDs Stop - 8 LEDs Tail - 20 LEDs	Stop - 16 LEDs Tail - 20 LEDs	Reverse - 16 LEDs Tail - 20 LEDs	Indicator - 16 LEDs Tail - 20 LEDs
Current Draw @ 13.8V	Ind - 0.1A, S/T - 0.2/0.15A @ 13.8V	Stop/Tail - 0.2/0.15A @ 13.8V	Rev - 0.2A, Tail - 0.15A @ 13.8V	Ind - 0.08A, Tail - 0.15A @ 13.8V
Lens Construction	PMMA	PMMA	PMMA	PMMA
Housing Construction	High Impact ABS	High Impact ABS	High Impact ABS	High Impact ABS
Mounting Hole Centres	45mm Stud Centres	45mm Stud Centres	45mm Stud CentresCentres	45mm Stud Centres
Dimensions AxB	122 x 38mm	122 x 38mm	122 x 38mm	122 x 38mm
Cable Length	250mm Sheathed	250mm Sheathed	250mm Sheathed	250mm Sheathed
ADR Approval	S/T - E97R02/272247500 Ind - E96R01/282247500 E93R02/1722475*00	S/T - E97R02/272247600 Ref - E93R02/172247600,	Tail - E97R02/272247100 Rev - E923R00/222247100 Ref - E93R02/1722471*00	Tail - E97R02/272247000 Ind - E96R01/282247000 Ref - E93R02/1722470*00
Wiring	Earth - White Stop - Red Tail - Brown Indicator - Yellow	Earth - White Stop - Red Tail - Brown	Earth - White Tail - Brown Reverse - Yellow	Earth - White Tail - Brown Indicator - Yellow
CTA Approval	CTA-060692	CTA-060694	CTA-060693	CTA-060691

Part Number

BR122ARR

BR122RR

BR122RW

BR122AR

Input Voltage

10-30 VDC

Number of LEDS

Indicator - 8 LEDs
Stop - 8 LEDs
Tail - 20 LEDs

Stop - 16 LEDs
Tail - 20 LEDs

Reverse - 16 LEDs
Tail - 20 LEDs

Indicator - 16 LEDs
Tail - 20 LEDs

Current Draw @ 13.8V

Ind - 0.1A, S/T - 0.2/0.15A @ 13.8V

Stop/Tail - 0.2/0.15A @ 13.8V

Rev - 0.2A, Tail - 0.15A @ 13.8V

Ind - 0.08A, Tail - 0.15A @ 13.8V

Lens Construction

PMMA

Housing Construction

High Impact ABS

Mounting Hole Centres

45mm Stud Centres

45mm Stud CentresCentres

45mm Stud Centres

Dimensions AxB

122 x 38mm

Cable Length

250mm Sheathed

ADR Approval

S/T - E9*7R02/27*22475*00
Ind - E9*6R01/28*22475*00
E9*3R02/17*22475*00

S/T - E9*7R02/27*22476*00
Ref - E9*3R02/17*22476*00,

Tail - E9*7R02/27*22471*00
Rev - E9*23R00/22*22471*00
Ref - E9*3R02/17*22471*00

Tail - E9*7R02/27*22470*00
Ind - E9*6R01/28*22470*00
Ref - E9*3R02/17*22470*00

Wiring

Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow

Earth - White
Stop - Red
Tail - Brown

Earth - White
Tail - Brown
Reverse - Yellow

Earth - White
Tail - Brown
Indicator - Yellow

CTA Approval

CTA-060692

CTA-060694

CTA-060693
