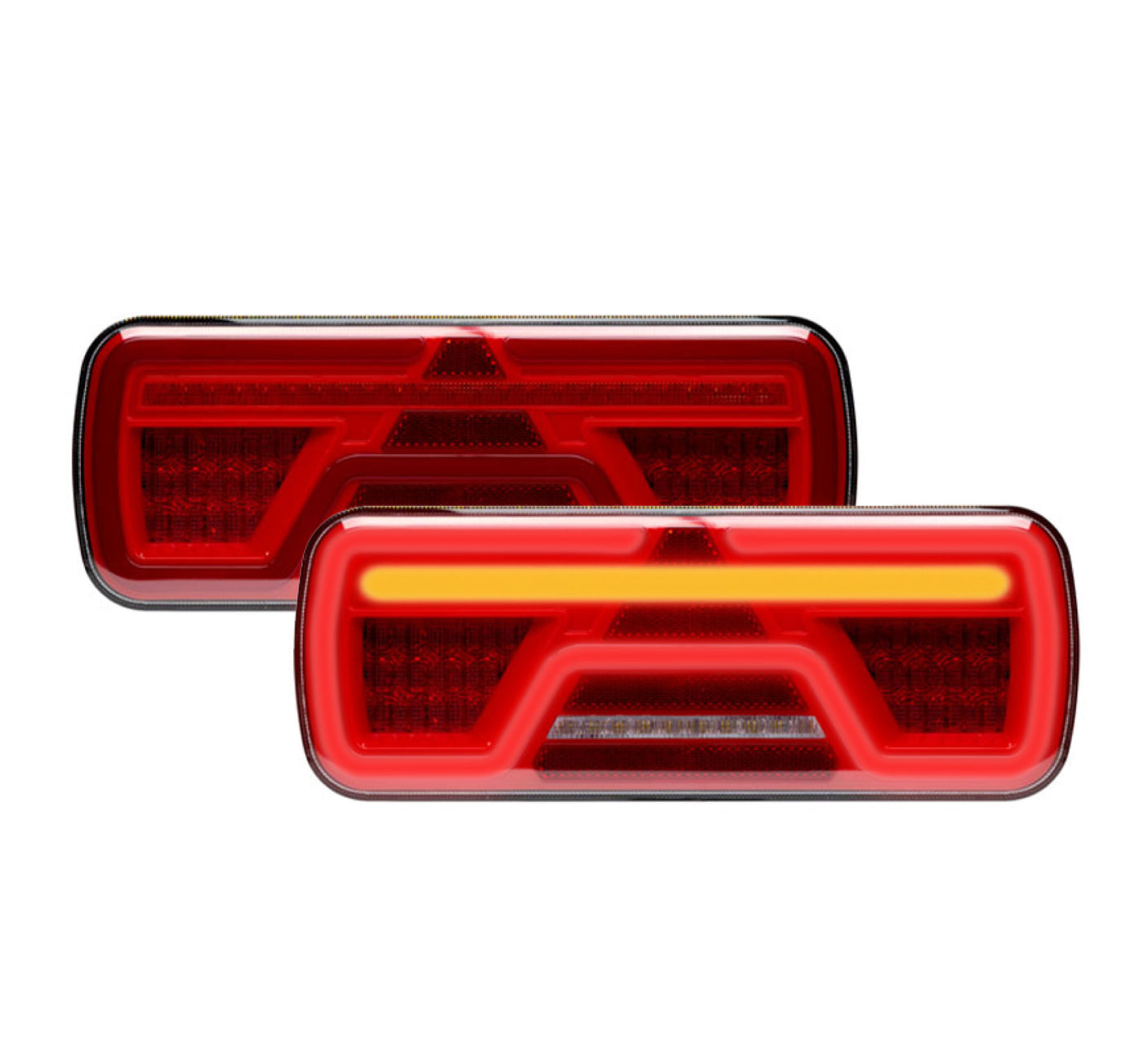

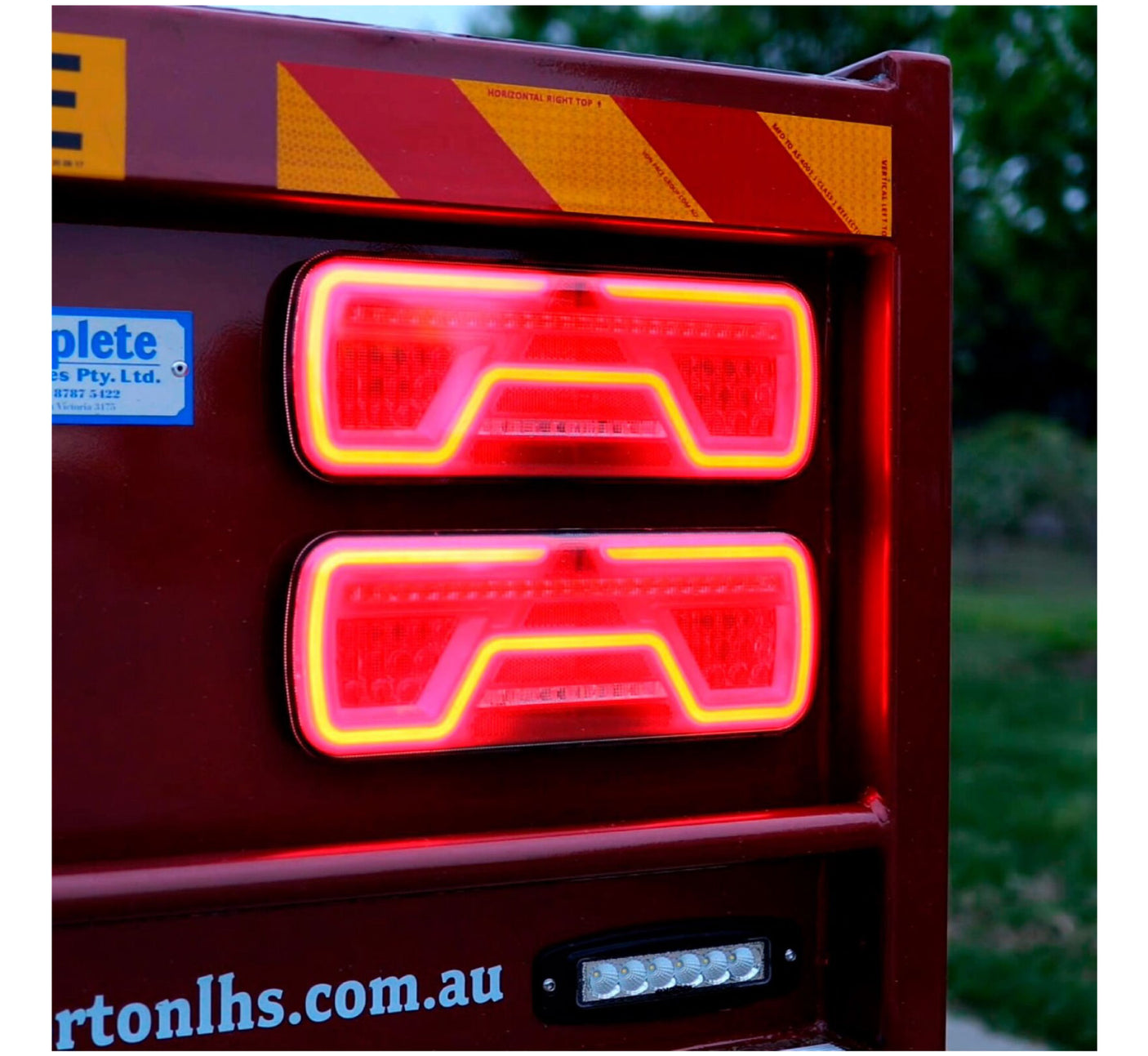

RoadVison BR360 Series Pair - Sequential Led Tail Lights
RoadVison BR360 Series Pair - Sequential Led Tail Lights is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Delivery available Australia wide, shipping is calculated at checkout.
ROADVISION’s BR360 Series are the complete all-in-one fit and forget solution. Featuring the latest sequential indicator technology, the BR360 Series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR360 Series will survive the toughest environments. Dust & water proof to IP67 and with a life span rated at 100,000 hours, the BR360 Series is totally maintenance free. With ROADVISION it’s FIT and FORGET.
MULTI VOLT 10-30V DC |
POLY CARBONATE LENS | HIGH IMPACT HOUSING |
ADR APPROVED |
|
|||
WATER & DUST PROOF | 5 YEAR WARRANTY |
FEATURES
- Stop/Tail Sequential Indicator, Fog & Reverse functions
- Retro Reflector incorporated into lens
- Glow Park Lamp
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR/ECE approved for all functions
- Light weight tough polycarbonate housing & lens
Specifications
Part Number | BR360LARW & BR360RARW |
---|---|
Description | Combination Lamp Rectangle |
Functions | Stop/Tail/Sequential Indicator/Fog & Reverse |
Voltage Input | 10-30V DC |
Number of LED's |
24 LEDs: Stop - 12 LEDs Tail - 60 LEDs Reverse 10 LEDs Fog - 12 LEDs |
Current Draw Amps | Ind - 0.2A, S/T - 0.2/0.3A, Rev - 0.3A, Fog - 0.4A @ 13.8V |
Dimensions AxBxC | 360x135x36mm |
Lens Construction | Polycarbonate |
Housing Construction | Polycarbonate |
Mounting Hole Centre | 152mm Stud Centres |
Cable Length | 300mm Sheathed |
Wiring Colour Codes |
Earth - Black Stop - Red/Blue Tail - Green Indicator - Green/Brown Reverse - Green/Violet Fog - Red |
ADR Approval |
Ind - E9-6R01/28-22818-00 S/T - E9-7R02/27-22818-00 Rev - E9-23R00/22-22818-00 Ref - E9-3R02/17-22818-00 Fog - E9-38R00/19-22818-00 |
