Tray to Chassis Mount - Universal

Item is sold as 1 mount. Add to cart as many mounts as you require.

Built for custom tray setups, our Tray to Chassis Mounts make it easy to mount your tray with rails to a wide range of 4x4 vehicles. They feature a slotted base for flexible, multi-use positioning and are made from heavy-duty steel for a strong, reliable fit. Once assembled, they bolt to your tray and chassis using M12 bolts.

Choose the black powdercoated mount, fully welded and ready to bolt on, or save with the raw steel version, supplied as a 2-part kit for you to weld together and finish yourself. Both options are made to handle serious loads and tough conditions.

Available Options

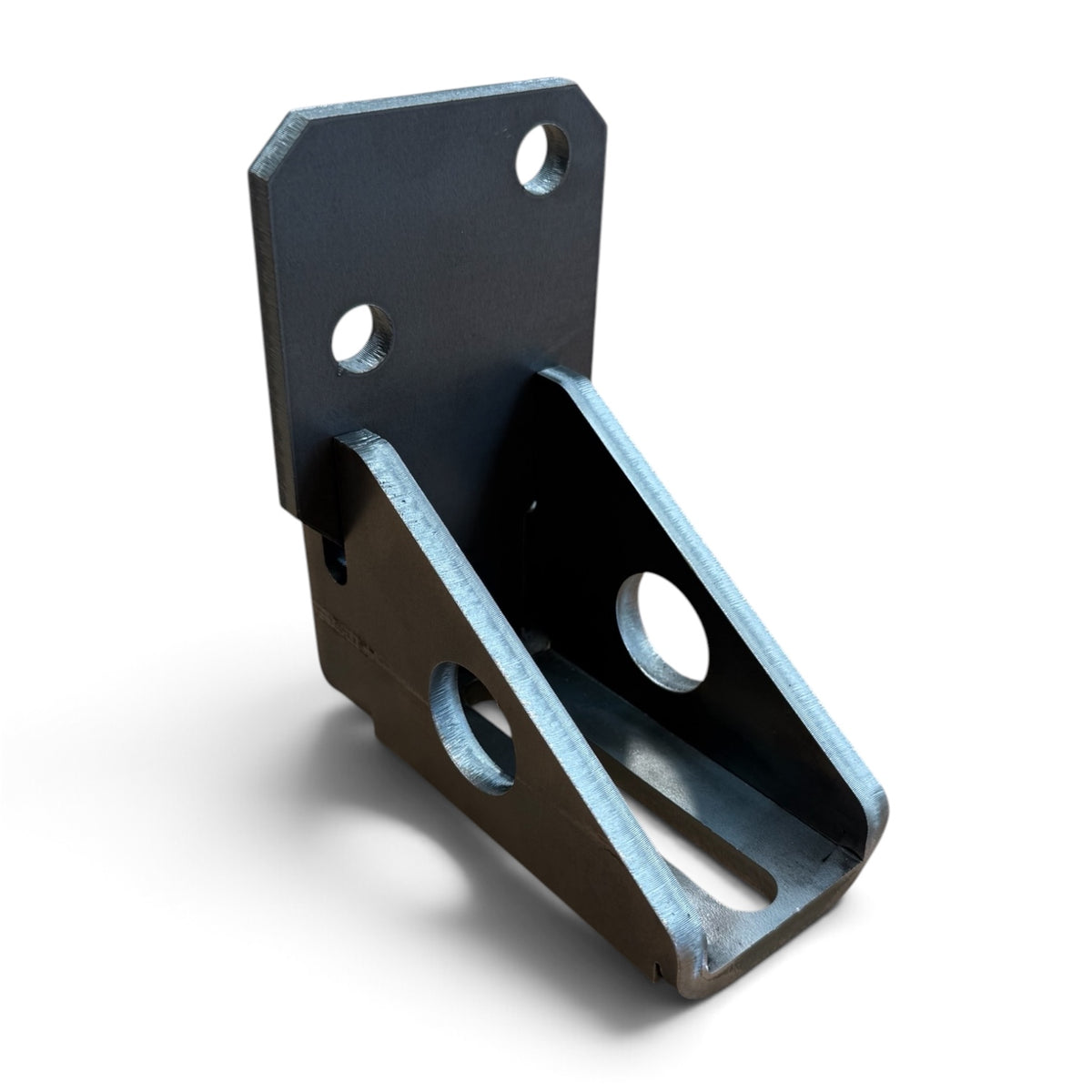

• Black Powdercoat: fully welded and powdercoated, ready to bolt on

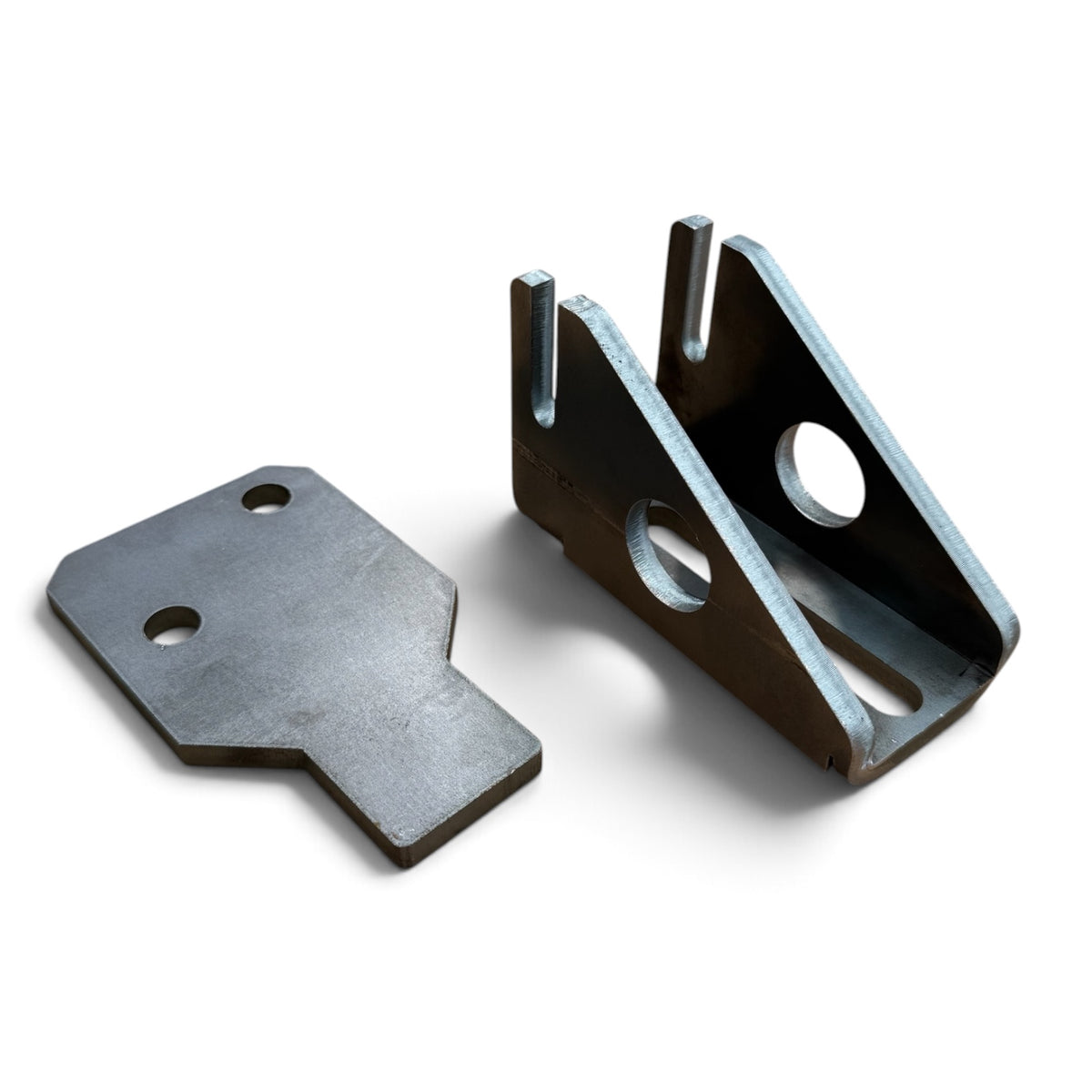

• Raw Steel (2-Part Kit): supplied unwelded and uncoated, weld the two parts together yourself, then bolt on

Available Heights

• 150mm High – 1.7kg each
• 200mm High – 2.3kg each

Features

• Universal tray to chassis mount for custom applications
• Ideal for fitting your own tray with rails to most 4x4 vehicles
• Slotted design for easier alignment and multi-use mounting options
• Heavy-duty steel construction
• Available fully welded and powdercoated, or as a raw 2-part weld-together kit
• Designed for use with M12 bolts
• Available in 150mm and 200mm height options

Specifications

• Material: Steel
• Finish: Black Powdercoat (welded) or Raw (2-part kit, unwelded)
• Mounting: Suits M12 bolts (not included)
• Variant Weights: 150mm - 1.7kg | 200mm - 2.3kg

Notes

• Raw steel mounts are supplied as 2 separate parts and must be welded together before installation. Welding should be carried out by a qualified welder.
• Raw steel is supplied uncoated and will surface rust if left untreated. We recommend painting or powdercoating after welding.
• Universal product. Fitment may vary depending on tray and vehicle chassis setup.
• Professional installation recommended.
• Please confirm measurements and mounting requirements before purchase.

If you need a strong, versatile mounting solution for your next tray build, these universal chassis mounts are made to get the job done, whether you want them ready to bolt on or prefer to weld and finish them yourself.
