Victron | SKU: BMV-712

Victron Battery Monitor BMV-712 with Bluetooth

Name: Victron Battery Monitor BMV-712 with Bluetooth
Brand: Victron
SKU: BMV-712
Price: 269.0 AUD
Availability: InStock

$269.00

Dispatch Notice

This item is stocked at an external warehouse. Please allow 2 business days to dispatch.

Delivery and Shipping

Delivery available Australia wide, shipping is calculated at checkout.

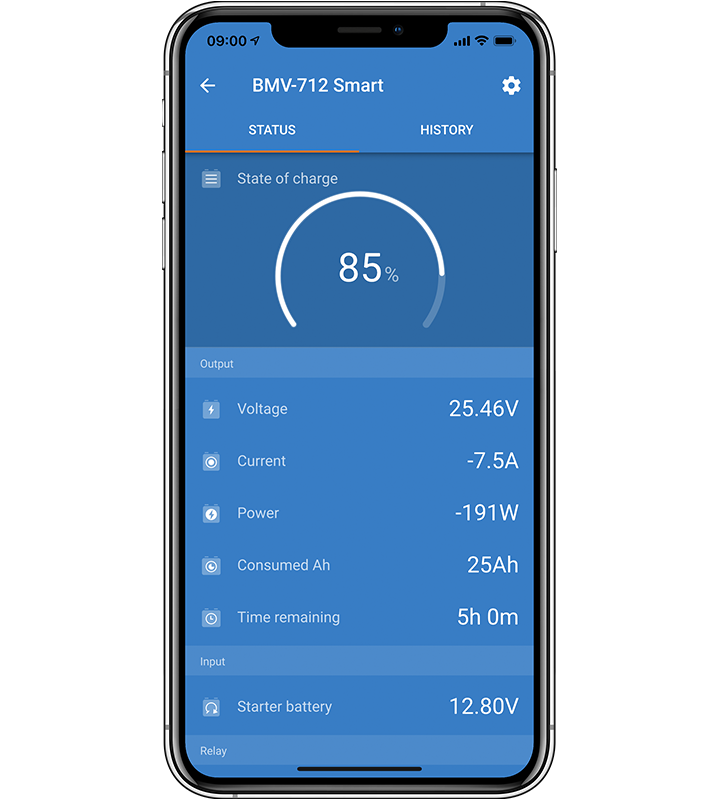

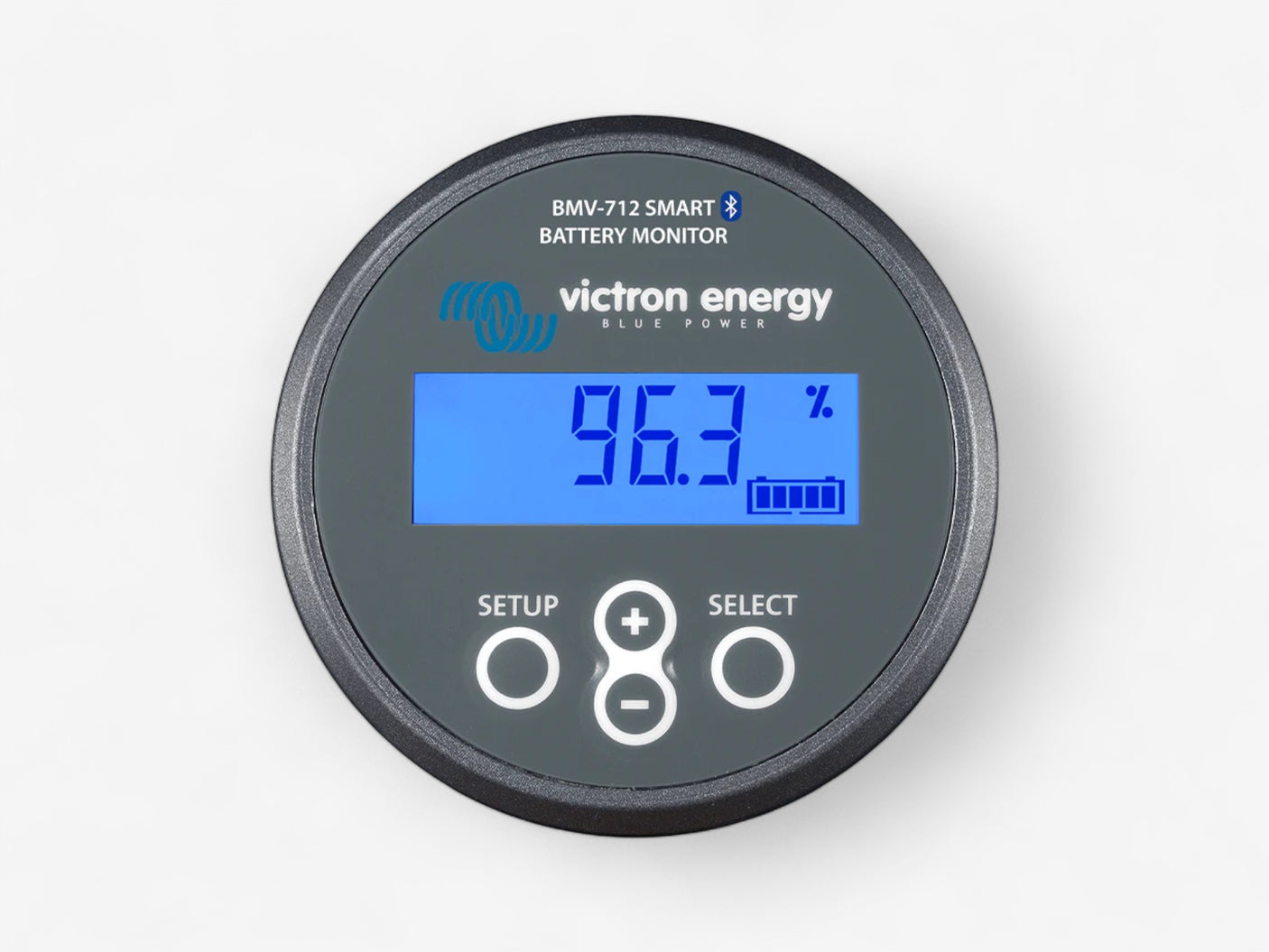

The BMV-712 is the latest high precision battery monitor from Victron. The BMV-712 monitors voltage and current of a single battery bank and calculates power, state-of-charge and time-to-go. It also features an additional voltage input that can be used to measure an auxiliary or starter battery voltage, midpoint voltage or temperature with the optional temperature sensor. Data can be transferred to smartphones or computers with the inbuilt bluetooth module and external alarms can be triggered with the relay contact.

Installation is simply a case of connecting the supplied shunt in the negative battery cable, mounting the monitor in a 52mm diameter hole and connecting the wires. An optional wall enclosure is available if surface mounting is preferred.

Whats in the box?

BMV 712 battery monitor
500A shunt and adapter board
10m cable to connect shunt to BMV
2x Positive voltage sense wire with fuse

Product Videos:

Introduction to the BMV-712 Smart

Sync settings for Lithium batteries - BMV-712 Smart

How to set up a Victron BMV Battery Monitor for lead and lithium batteries

Battery Monitor	BMV-712 Smart
Supply voltage range	6,5 - 70 VDC
Current draw, back light off	< 1mA
Input voltage range, auxiliary battery	6,5 - 70 VDC
Battery capacity (Ah)	1 - 9999 Ah
Operating temperature range	-40 +50°C (-40 - 120°F)
Measures voltage of second battery, or temperature, or midpoint	Yes
Temperature measurement range	-20 +50°C
VE.Direct communication port	Yes

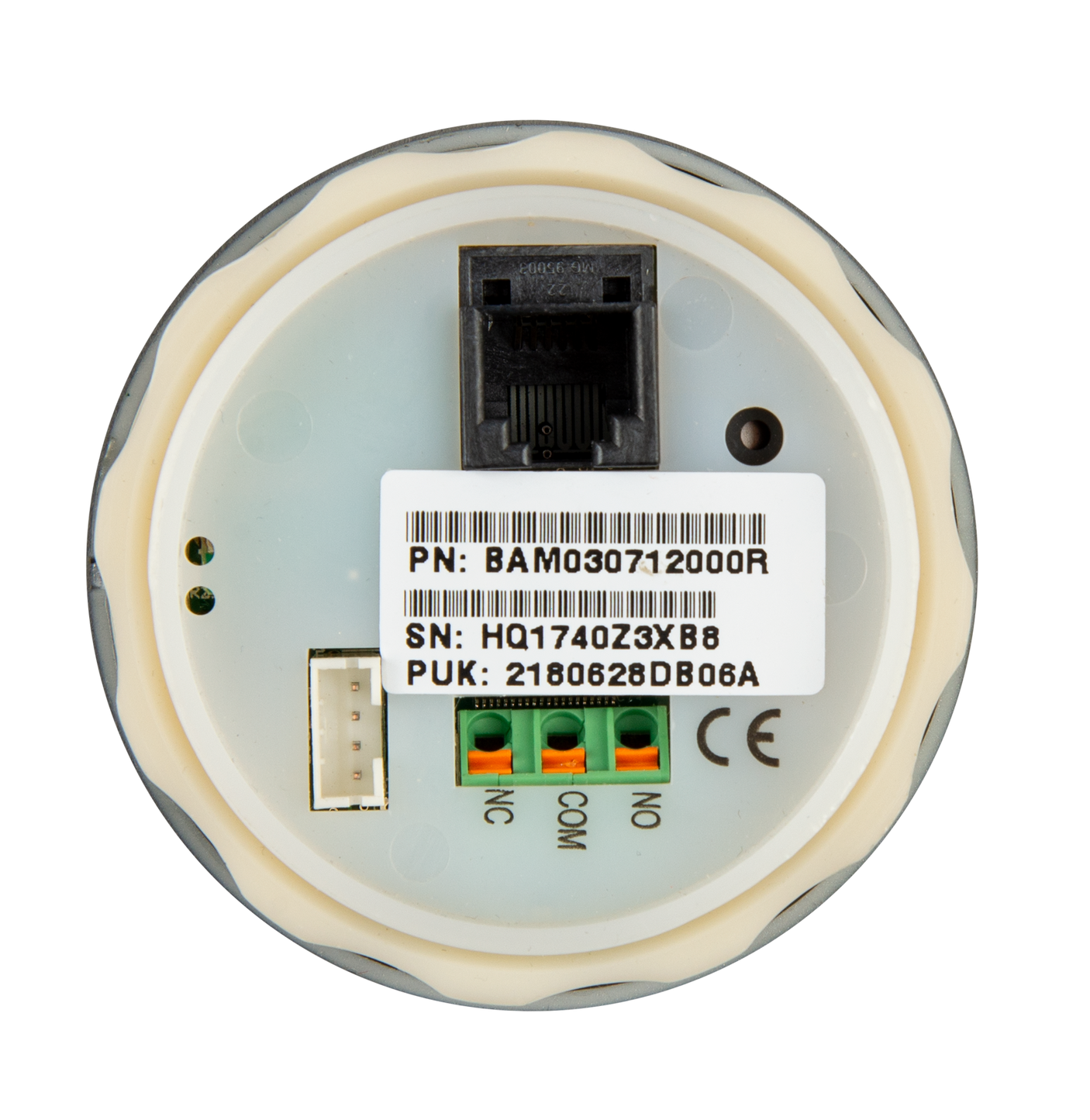

Bistable relay	60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
Current	± 0,01A
Voltage	± 0,01V
Amp hours	± 0,1 Ah
State of charge (0 – 100%)	± 0,1%
Time to go	± 1 min
Temperature (0 - 50°C or 30 - 120°F)	± 1°C/°F
Accuracy of current measurement	± 0,4%
Accuracy of voltage measurement	± 0,3%
INSTALLATION & DIMENSIONS
Installation	Flush mount
Front	63mm diameter
Front bezel	69 x 69mm (2.7 x 2.7 inch)
Body diameter and depth	52mm (2.0 inch) and 31mm (1.2 inch)
Protection category	IP55 (not intended for outdoor use)
STANDARDS
Safety	EN 60335-1
Emission / Immunity	EN 55014-1 / EN 55014-2
Automotive	ECE R10-4 / EN 50498
ACCESSORIES
Shunt (included)	500A / 50mV
Cables (included)	10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
Temperature sensor	Optional (VIC.ASS000100000)

SKU	VIC.BAM030712000R
Model #	BAM030712000R
UPC/EAN	8719076037798
Brand	Victron Energy
Shipping Weight	1.3300kg
Shipping Width	0.230m
Shipping Height	0.280m
Shipping Length	0.070m
Shipping Cubic	0.045080000m3
